Geological Events Contributing to Fracturing at Emerald Creek
Event 1 - An ancient sea floor
Long before the events that shaped the rocks we see today, the area that is now the Atherton Tablelands lay beneath an ancient ocean. Mud and sand accumulated on that ocean floor over an extended period, building up thick sequences of sediment. These sediments are the origin of the Hodgkinson Formation — the ancient country rock into which everything else was later intruded. The evidence for this ancient sea floor is visible today on the drive in to Emerald Creek Falls — the thinly layered, steeply tilted rock exposed at the road cutting on Emerald Falls Road is those same sediments, transformed almost beyond recognition by everything that followed.
Event 2- Kanimblan Orogeny, ~300 million years ago
Powerful compressional forces deformed the Hodgkinson Formation sediments — folding, faulting and metamorphosing them into the schist visible today at the road cutting. This inscribed the first major fracture network into the rocks of the area — the regional joint sets that would subsequently control everything that followed. The dominant joint orientations on the creek bed slabs likely originate here.
Event 3 - Intrusion of Emerald Creek Microgranite
A body of magma rising through the crust encountered the Hodgkinson Formation and exploited its pre-existing fracture network to move upward and outward. It eventually pooled and crystallised as the Emerald Creek Microgranite pluton — believed by Willmott to be older than the surrounding Tinaroo Granite, though this is not certain. As the granite cooled and contracted it developed its own additional cooling joints superimposed on the fractures already present in the ancient rock.
It is worth pausing to picture where all of this was happening. These intrusions were not surface events. The magma was forcing its way through rock kilometres below the ground surface under enormous pressure. The schist, the granite, the aplite dykes — all of it solidified deep underground. What we walk on today at Emerald Creek was once buried beneath kilometres of rock that no longer exists, removed grain by grain over hundreds of millions of years of erosion until the creek and the waterfall and the slab surfaces were finally exposed.
Event 4 - Intrusion of the aplite dykes
Later pulses of residual magmatic fluid — water-rich, silica-rich, and fast cooling — exploited the existing fracture network to intrude as flat sheets across and through the microgranite. Multiple aplite dykes are present at Emerald Creek: the main falls dyke, over 30 metres wide and more resistant than the surrounding microgranite, which Willmott identifies as creating the main waterfall drop; and smaller pink aplite dykes visible in the creek bed downstream.
On cooling, each dyke developed its own internal fracture network. The fracture pattern within the aplite is distinctly more intense and regular than in the surrounding microgranite — a direct consequence of the fine-grained homogeneous nature of the rock allowing fractures to propagate in very straight lines. The sharp contact between dyke and host rock is clearly visible in some images.
Event 5 - Erosion, pressure release and further fracturing
As millions of years of erosion stripped the overlying rock, pressure on the granite below was progressively released. The granite expanded upward and developed sheeting joints broadly parallel to the surface and to the original dome geometry of the intrusion — producing the broad flat slab surfaces visible upstream of the falls.
The same pressure release process also affected the aplite dykes, which responded differently to unloading than the surrounding coarser granite. Additional fractures developed within the already-jointed dyke rock. Whether these represent pressure release fractures, longitudinal cooling contraction along the dyke length, or a later tectonic stress event cannot be determined from images alone.
What is clear is that the cumulative result of all fracture generations is visible in the ground level close-up images — multiple intersecting fracture sets of different orientations and ages, stained by mineralised fluids, dividing the aplite into angular blocks that are now being progressively removed by the creek.
What the visitor sees today
The landscape at Emerald Creek is the cumulative expression of all four events simultaneously. The flat slabs are Event 5. The rectangular fracture grid on the dyke faces is Event 4. The orthogonal joint traces controlling the creek path are Events 2 and 3. The waterfall exists because Event 4 delivered resistant rock across the creek’s path. And the creek — patient, persistent, exploiting every fracture in the system — is the ongoing fifth event, still writing the next chapter.
The next chapter about Emerald Creek Falls (work in progress) is Surface Features on the Granite Slab — Fluvial Erosion Impacts.
Follow me on Substack for more field notes - https://kevinexplores.substack.com/
Bones Knob: a volcano hiding in plain sight
Kevin Explores · Atherton Tablelands Geology
Kevin Explores - Field Notes
Mar 14, 2026
Stand at the edge of the Atherton Tablelands and look north toward Mareeba, and you’ll see a broad, gentle hill rising modestly above the cane fields and macadamia orchards. Nothing about it shouts danger. Nothing suggests that the ground you’re looking at was, not so long ago in geological time, the source of one of the most significant lava flows in Far North Queensland. That hill is Bones Knob — and from the air it tells a geological story that rewards closer attention.
Image 1: Looking northeast from the south side of the Bones Knob shield volcano. The broad, gently rounded summit of the shield component occupies the left, its low-angle profile the signature of basalt that spread wide rather than building steep. The Barron Range and coastal ranges fill the horizon. The pastoral land in the foreground sits directly on shield flows that spread from this point nearly 1.8 million years ago.
The geological foundation
Bones Knob is documented in Whitehead et al. (2007) — the definitive study of the Atherton Basalt Province — as a two-stage volcanic system comprising a large shield volcano (Bones Knob 1, dated at 1.79 Ma) and a smaller parasitic scoria cone (Bones Knob 2, dated at 1.66 Ma) perched within a horseshoe-shaped depression on the shield’s northwestern flank.
The shield has a radius of approximately 2,800 m and rises 175 m above the surrounding country — one of the larger eruption centres in the province. The scoria cone is only 250 m in radius and 112 m high, but punches well above its weight in geological interest.
The basalts from the shield phase contain numerous prominent olivine phenocrysts — the magnesium-iron silicate mineral that crystallises early from cooling magma — and are readily distinguished from other flows in the province by this characteristic. Whitehead et al. note that these basalts flowed over 30 km to the north, beyond the present site of Mareeba. The lava that built the town’s soils and aquifers began its journey here.
Image 2: Close panorama of the scoria cone’s northern face. The steep cone dominates the left, with a small cliff exposure marking the pyroclastic sequence beneath the grass. The forested horseshoe depression curves away to the right — the structural hollow that records either an explosive maar-phase eruption or preferential erosion of the friable scoria. Farm buildings visible on the far right.
Reading the landscape from above
The drone imagery reveals the geomorphological story with unusual clarity. Two features in particular are immediately diagnostic.
The horseshoe depression
The curved embayment into the northwestern side of the main cone is the most striking landform feature. Whitehead et al. interpret this as either the product of an initial maar-style eruption that excavated a crater at least 500 m across — before subsequent pyroclastic deposits built the scoria cone — or as the result of preferential erosion of the friable scoriaceous deposits after the shield flows surrounded the cone. Either interpretation is geologically significant: the horseshoe geometry is not random erosion but the preserved imprint of the eruptive sequence itself.
The columnar jointing
The cliff faces visible in the drone images expose what Whitehead et al. describe as poorly developed columnar jointing in the pyroclastic deposits, with columns nearly 1 m across. Columnar jointing in pyroclastic material requires deposition in a sufficiently hot and massive state to partially weld the fragments before cooling and contraction produce the vertical fractures. Such structures are unusual in basaltic pyroclastic deposits anywhere, and those at Bones Knob are noted as unique within the entire Atherton Basalt Province.
Image 3: Wide panorama with the scoria cone sitting in mid-distance, showing its relationship to the surrounding agricultural landscape — orchards left, fields right, the Great Escarpment and Wet Tropics ranges across the horizon. The fertile red soils across this entire view began as Bones Knob basalt, weathered over nearly two million years.
The living landscape
The vegetation patterns visible in the imagery are themselves a direct expression of volcanic geology. The exposed pyroclastic cliffs support sparse, stress-tolerant communities adapted to skeletal soils. The lower slopes, where weathered basalt has developed into the deep krasnozem soils characteristic of the Tablelands, carry subtropical dry sclerophyll forest. The cleared summit demonstrates the extraordinary agricultural productivity of these basaltic soils — the same olivine-bearing basalt that makes Bones Knob geologically interesting also weathers to produce the most fertile soil types in Far North Queensland.
Image 4: Looking straight down onto the top of the scoria cone, its grassed summit ridge running diagonally across the frame. Tolga township spreads across the background, a farm dam visible top right. The town sits on basalt flows that erupted from this point 1.79 million years ago — the agricultural landscape entirely dependent on what lies beneath.
The eruptive sequence
The 130,000-year gap between the two dated events at Bones Knob raises important questions about the subsurface history. Whitehead et al. offer two alternative interpretations of the relationship between the eruption centres.
In the first interpretation, a maar-style eruption — phreatomagmatic, involving water-magma interaction at depth — excavated a large crater into the shield’s northwestern flank after the shield was already built. This crater then became the site of the subsequent pyroclastic activity that built the scoria cone. A deep, explosive eruption penetrated and disrupted the existing volcanic edifice.
In the second, the scoria cone predates the shield, and the horseshoe depression marks preferential erosion of the pyroclastic deposits after the surrounding shield flows buried the cone’s base. The age data marginally favour the first scenario, but the difference in dates is within experimental uncertainty.
What is not in doubt is the welded columnar jointing. The Bones Knob scoria cone preserves evidence for an unusually energetic eruptive phase — temperatures more typical of large silicic welded ignimbrites than of small basaltic cinder cones. Whatever the precise sequence, this eruption was outside the normal range for the province.
Image 5: The scoria cone’s cliff face seen head-on — the most complete exposure of the pyroclastic sequence at Bones Knob. The reddish-brown oxidised scoria tells the eruption story directly: iron reacting with oxygen as molten cinders tumbled through the atmosphere before landing. Red scoria means a hot, gas-charged eruption.
Image 6: Close approach to the cliff face reveals the layered pyroclastic sequence in detail. The horizontal banding records successive depositional phases of the eruption. The cave-like recess at centre may mark the welded zone — where deposits landed hot enough to partially fuse, producing the columnar jointing documented as unique in the Atherton Basalt Province.
What Bones Knob tells us about the province
In the broader context of the Atherton Basalt Province’s evolution, Bones Knob sits at a transitional moment. The 1.79–1.66 Ma period falls within the province’s second major episode of shield-building activity — just before the shift toward smaller cinder cone eruptions that characterised the last million years. Bones Knob represents the tail end of the era of voluminous, effusive eruptions, while its parasitic scoria cone signals the more explosive, gas-rich magmatic character that would come to define the younger volcanic centres.
The province as a whole tells a story of waning magmatic supply: from valley-filling shield volcanoes drawing on deep, partially molten mantle material, to the smaller and more volatile-rich eruptions of the maar and cinder cone phase. Bones Knob sits at that inflection point. It is simultaneously one of the last great shield systems and the site of one of the more unusual pyroclastic events in the province’s record.
From above with a Mavic 4 Pro, all of this is legible. The broad, gentle shield profile. The horseshoe depression. The exposed cliff face. The olivine-bearing basalt soils feeding the orchards below. The geology is not buried here — it is the landscape.
Geological data: Whitehead, P.W., Stephenson, P.J., McDougall, I., Hopkins, M.S., Graham, A.W., Collerson, K.D. and Johnson, D.P. (2007). Temporal development of the Atherton Basalt Province, north Queensland. Australian Journal of Earth Sciences 54:5, 691–709.
All aerial photography: Kevin Explores / Mavic 4 Pro, January 2026.
Celebrating Good Riparian Management on Peterson Creek

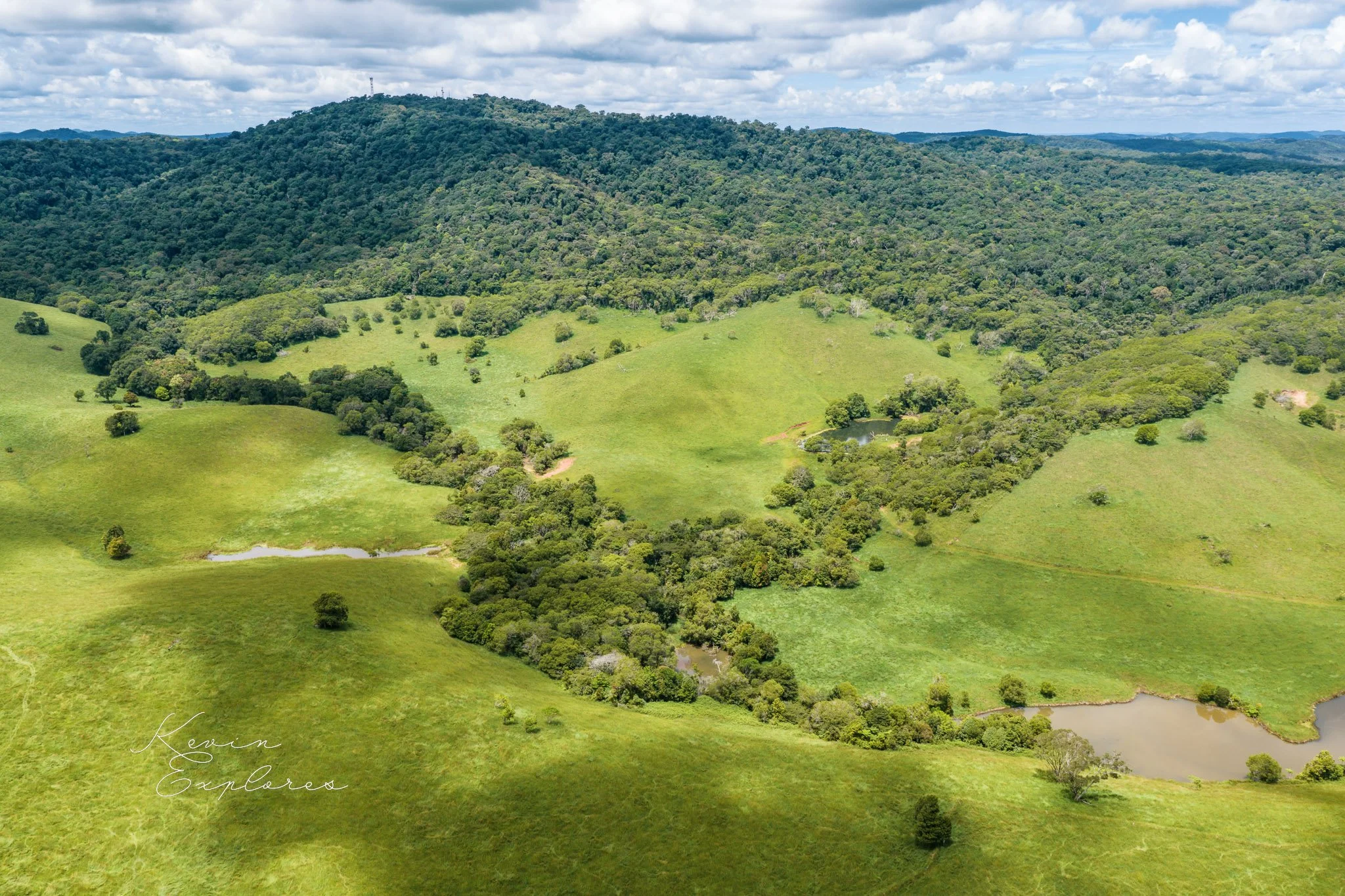

Flying over the upper Peterson Creek catchment this morning, I was struck by some excellent examples of riparian corridor protection by local landholders - including active restoration work happening right now.
These aerial images show exactly what good catchment management looks like:
- Wide, vegetated buffers protecting creek banks
- Fresh tree planting visible as lighter patches - restoration in progress!
- Multi-layered vegetation - mature trees, shrubs, and groundcover working together
- Livestock excluded from creek corridors (note the cattle grazing safely away from waterways)
- Natural creek meanders protected and intact
- Wildlife corridors connecting forest remnants across the landscape
This isn't just good environmental practice - it's smart farm management:
- Stock health - cattle have cleaner water from off-stream sources
- Erosion control - vegetated banks hold soil in place
- Property values - protected riparian zones enhance land value
- Biodiversity - these corridors support native species that control pests naturally
- Water quality - vegetation filters runoff before it reaches the creek
A huge thank to TREAT (Trees for the Evelyn and Atherton Tablelands) for decades of work creating wildlife corridors like the one visible in these images. These green threads across our landscape do double duty - habitat for wildlife AND water quality protection.
Special recognition to the landholders actively planting NOW - those lighter patches visible from the air are fresh revegetation areas. You're not just maintaining what's there, you're actively improving it. Thank you.
Context matters: As Barron Catchment Care works with Yungaburra Landcare Group and many other stakeholders on Peterson Creek water quality monitoring, these images remind us that solutions exist. Where riparian zones are protected and managed well, we see healthier waterways and healthier farms.
Not every property is there yet - and that's okay. Change takes time, resources, and support. But these images show what's possible when landholders, community groups, and local knowledge come together.
To the farmers protecting these riparian corridors: Thank you. You're leading the way.
To those considering improving riparian management: Barron Catchment Care can help with advice, potential funding, and connecting you with others who've done it successfully.
To TREAT and all the volunteers: Your wildlife corridors are water quality corridors too. Thank you for your vision and persistence.
Cheers Kevin
Aerial images: Peterson Creek upper catchment, 8 March 2026
Millstream Falls - Rereading the Rock
Millstream Falls National Park
Millstream Falls isn't new to me. I've shot it before — drone footage, stills, the usual passes. I thought I had it.
Then I went back to the literature.
Specifically, to the work of JCU and ANU geologists who dated the basalt flows here to 1.24 million years, and to Warwick Willmott's careful reading of what those flows actually mean for the landscape you can see. I went back to the falls this morning with that knowledge in my head and a different set of questions. Same place. Completely different shoot.
That's the thing about geological interpretation. The landscape doesn't change. Your ability to read it does. And once you start reading it, the familiar becomes extraordinary.
Here's what the rock is saying.
The hill you can see from Ravenshoe — the broad, gently sloping ridge now occupied by the wind farm east of town — is Windy Hill volcano. It doesn't look like a volcano because it isn't one anymore. The summit has collapsed. What remains is the eroded flanks of a shield volcano that geologists from James Cook University and the Australian National University dated, from samples collected right here at Millstream Falls, at 1.24 million years old. Two samples. Widely separated locations. Same answer. That's not an estimate — that's a date stamped into the rock by physics.
From Windy Hill, lava poured more than 25 kilometres south and southwest, filling an old valley of the Millstream River. The river, suddenly entombed, had to find a new way. It worked along the margins between the fresh black basalt and the older surrounding rocks — rhyolite, in this case, from a completely different volcanic episode nearly 300 million years older. Where the boundary was exploitable, the river followed it. Where it wasn't, the river cut directly into the basalt itself. That patient negotiation between water and rock over a million years is what produced this gorge.
The falls are a direct expression of the lava's geometry.
The basalt flows cooled from the outside in. As they solidified, they contracted — and that contraction drove fractures downward through the rock in a repeating pattern. Hexagonal columns, mostly, though rectangles and irregular polygons appear too. The physics is the same as a beehive, the same as dried mud. The result here is those columns in the lower cliff faces — a permanent record of how the rock was made, written into the gorge wall at full scale.
The upper surfaces of these flows stayed horizontal — flat, level, essentially as the lava left them. That geometry is why the falls are so wide. The river reaches that shelf, finds no weakness to exploit, and spreads sideways across the full width before going over the edge all at once. The shape of the waterfall is the shape of the lava flow.
Geologist Warwick Willmott put the connection plainly: the falls plunge in a wide curtain over the horizontal lowermost lava flow, showing how geology can directly shape the appearance of streams and falls. It's not poetry. It's mechanics. But the result is extraordinary.

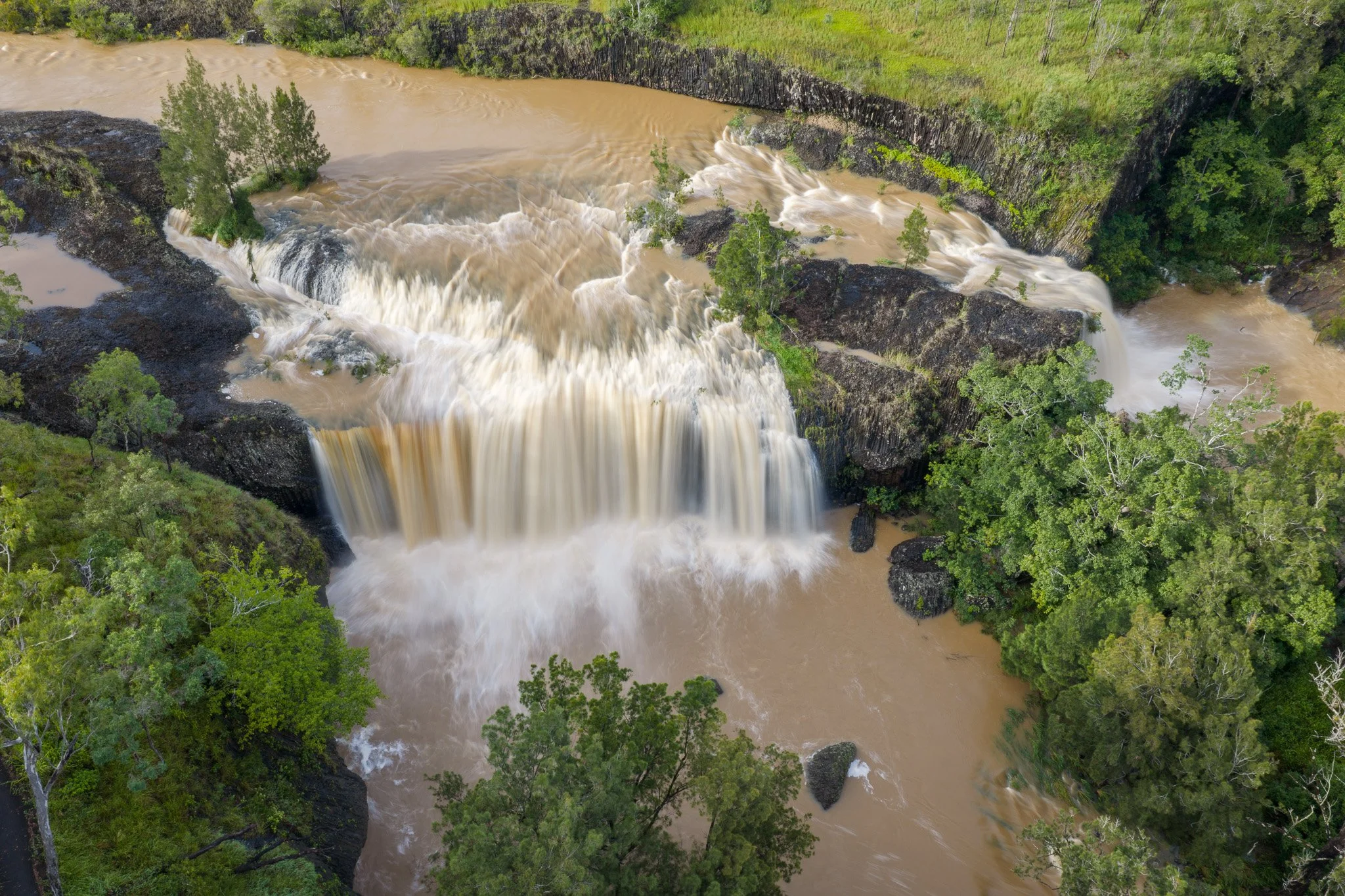

The long exposure in this set shows what I mean — the silked water breaking over the column tops, geology and hydrology in a single frame.
The literature tells me that from sufficient altitude the boundary between the basalt and the rhyolite is readable as two distinct vegetation types — denser forest on the dark soils, open eucalypt woodland on the pale — but that's a story for another shoot, with better positioning and the right season.
This volcanic landscape was also witnessed.
The Atherton Basalt Province didn't finish its activity before people arrived. Research published in the Australian Journal of Earth Sciences confirms that volcanic eruptions in this region continued well into the Holocene — within the last 10,000 years, and possibly much more recently. The crater lakes you can visit today — Barrine, Eacham, Euramoo — formed within human memory. Aboriginal oral history recorded by linguist R.M.W. Dixon in 1972 includes a detailed account of the formation of those lakes that Dixon described as a plausible description of a volcanic eruption. The storyteller noted that the country around the lakes was open scrub at the time — a detail later confirmed by pollen analysis, which showed the present rainforest to be less than 7,600 years old. People watched this landscape being made. Their knowledge of it is older than the forest that now surrounds it.
The Google Earth image in this set shows the spatial relationship — Windy Hill to the east of Ravenshoe, the flow path running south and southwest, Millstream Falls sitting at the end of the line. Twenty-five kilometres from source to falls, written in rock.
If you want to understand this country — really understand it — start with the rock. Everything else follows.
If you are interested in information like this, please follow me or subscribe kevinexplores.substack.com
Cheers, Kevin
Millstream Falls National Park · Ravenshoe · Atherton Tablelands
Kennedy Highway, 3km west of Ravenshoe
Aerial footage: Mavic 4 Pro
Geological sources: Willmott, W.F. — Rocks and Landscapes of the National Parks of North Queensland, Geoscience Australia; Whitehead et al. (2007) — Temporal development of the Atherton Basalt Province, Australian Journal of Earth Sciences 54:5.
Volcanism and the Barron River — What the Landscape Remembers
The Barron River has an unlikely birth. It begins as seepage in rainforest directly beneath a communications tower, drops into cleared farming country running alongside the largest shield volcano on the Atherton Tablelands, then crosses under the Kennedy Highway to enter Mount Hypipamee National Park — site of one of the most violent volcanic events in the region's recent geological history. That short stretch of river traverses millions of years of geological story.
The Pre-Volcanic Landscape
Before volcanism began roughly 7 million years ago, the Tablelands were a far more dissected landscape — a complex of valleys and ridgelines carved into ancient metamorphic and granite basement rocks now over 400 million years old. The Barron existed, but the catchment was shaped very differently. Some tributaries we now consider part of the Barron system almost certainly drained northwest toward the Gulf of Carpentaria via the Mitchell River catchment. The Barron we know today is substantially a product of volcanic and tectonic rearrangement — the river has been rebuilt by fire.
The Great Valley-Filling

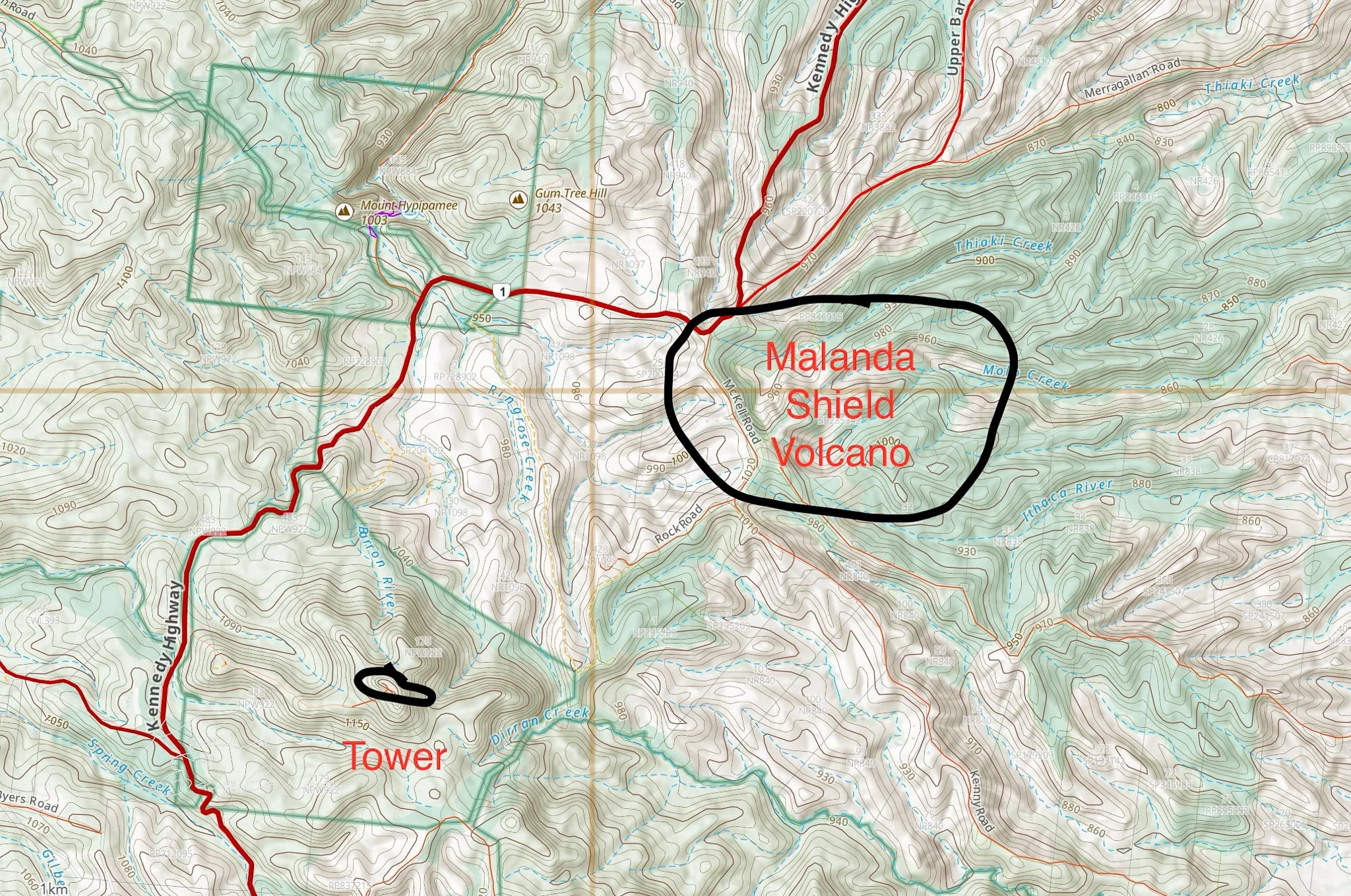

The defining geological event for the modern Barron catchment was the eruption of the Malanda shield volcano between about 3.4 and 3 million years ago. It was — and remains — the largest volcanic centre in the Atherton Basalt Province, with a radius of 7 kilometres and flows that reached as far as Mena Creek, 60 kilometres to the southeast. Its lava did not flow over a flat surface. It exploited the lowest ground, pouring into and filling the pre-existing valley network, burying the old drainage under basalt hundreds of metres thick in places. What had been a dissected landscape of valleys and ridges became the relatively flat, smoother contoured tableland surface we recognise today.
A River Pushed to the Margins

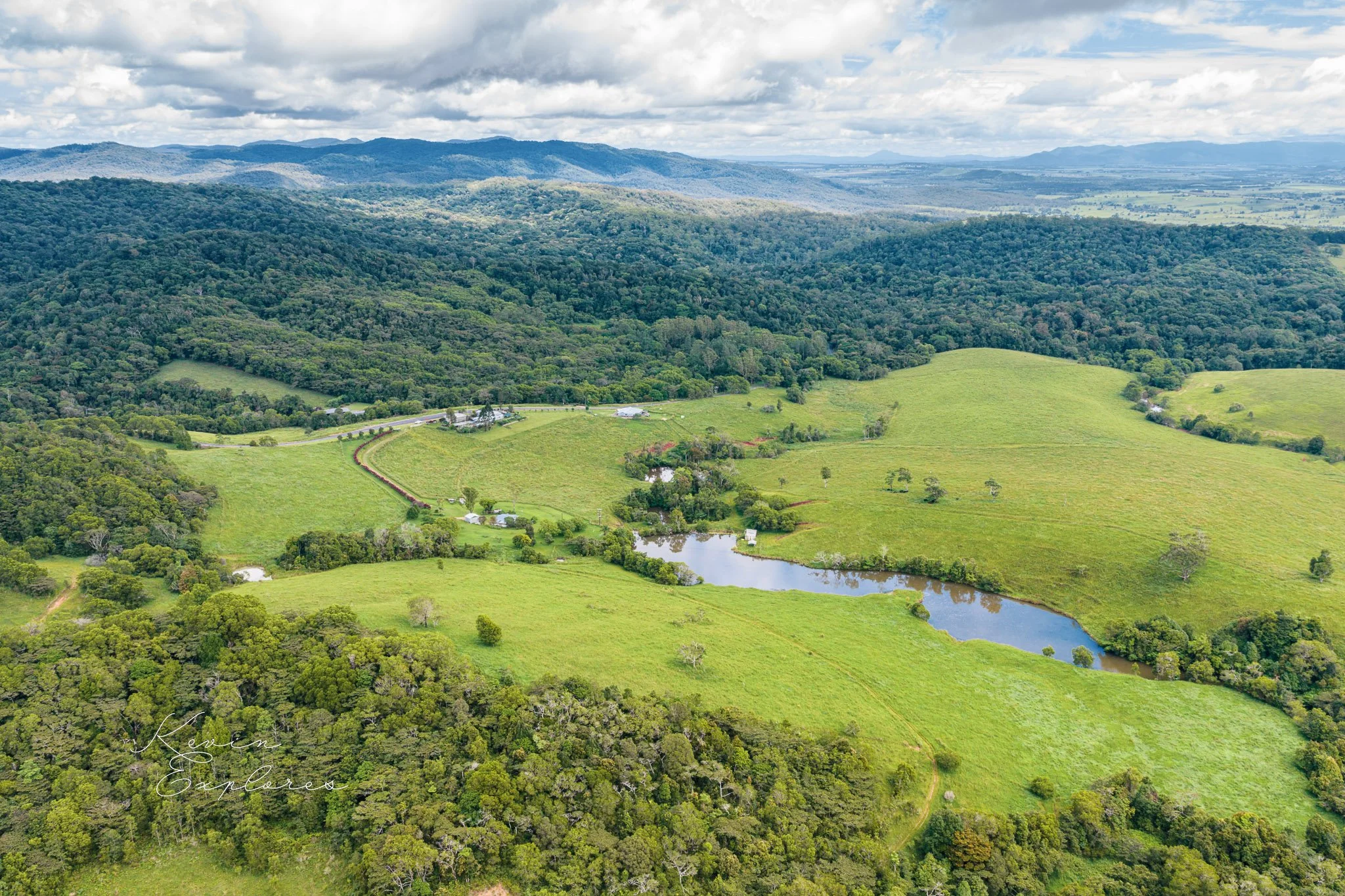

The aerial image looking north tells this story in a way that ground level cannot. The Malanda volcano occupies the right side of the frame — not as a dramatic cone, but as something three million years of tropical erosion has transformed into a complex of rainforest-draped ridges and deeply incised valleys, the original lava surface long since carved by streams into the terrain you see here. To the left, and out of shot but evident in the topographic map, is the older basement country of the Herberton Range — metamorphic and granite rocks far more ancient than the basalt. Headed north, the Kennedy Highway runs a ridgeline that straddles a geological boundary that most travellers don't know exists.

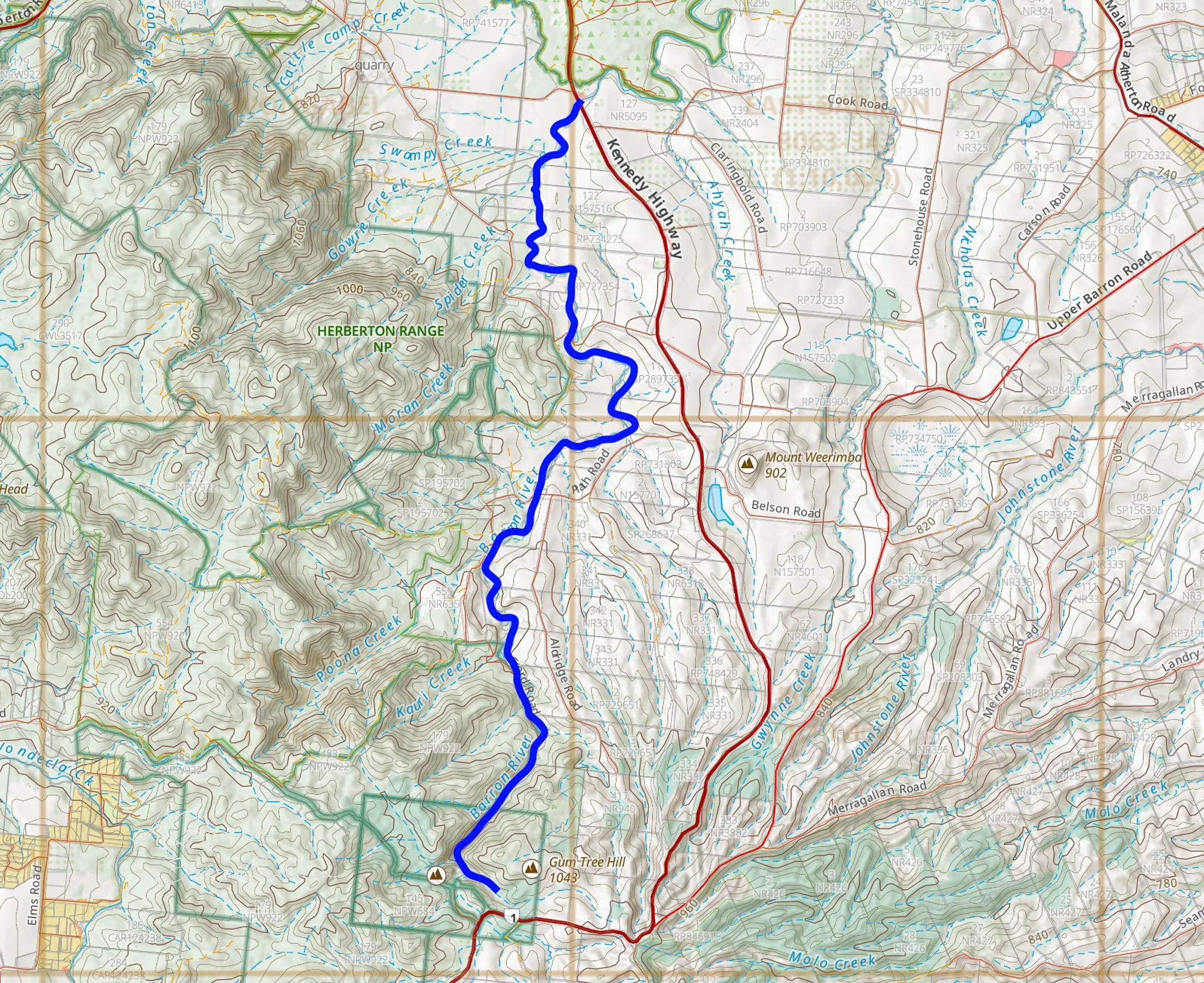

Read alongside the map, the image reveals something subtler. The Barron River runs not across the volcanic surface but along its western edge — displaced to the foothills of the older ranges because the Malanda volcano's lava flows claimed the central tableland. The river didn't vanish under the basalt. It was likely pushed aside, and it has been running along that displaced course ever since.
Disruption by Diatreme

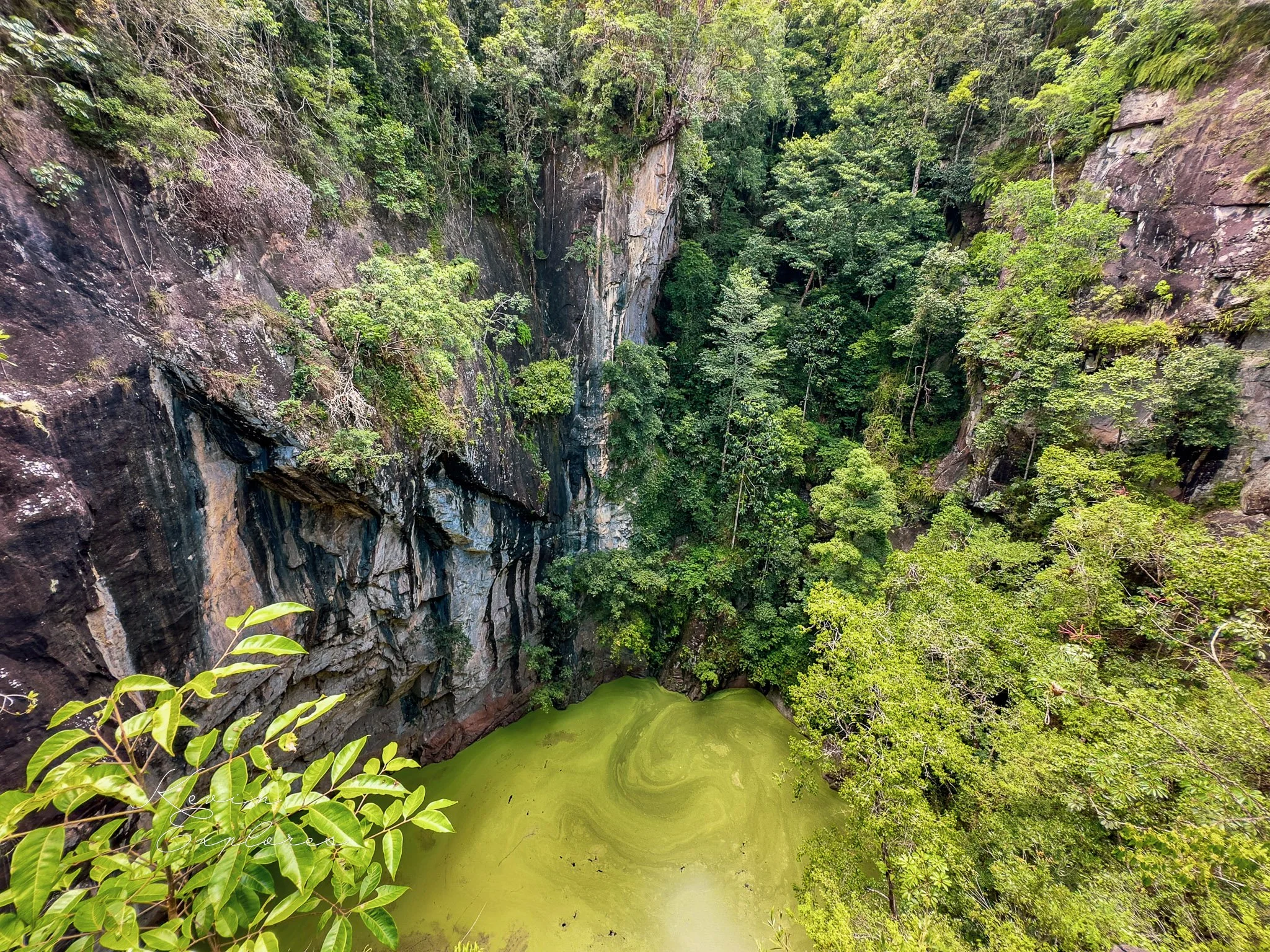

Dinner Falls — a small but perfectly formed waterfall in the vicinity of the Barron's headwaters — sits immediately adjacent to the Hypipamee diatreme, a vertical-walled crater blasted through solid rock by a single violent gas explosion. Diatreme and maar eruptions in the province are among its most recent events, occurring well within the timeframe of human occupation of the Tablelands. Aboriginal oral traditions recorded by researchers describe the formation of the crater lakes in terms that one linguist called a plausible description of a volcanic eruption — the storyteller noting in 1964 that the country around the lakes was open scrub at the time of the events described, before pollen analysis later confirmed the surrounding rainforest to be less than 7,600 years old. The Barron is born in country that was geologically explosive within living memory of the people who have called this landscape home for tens of thousands of years.
What We Don't Yet Know
The precise relationship between individual lava flows and the reshaping of the Barron catchment remains poorly understood. The most rigorous dating of the volcanic centres — Whitehead et al. (2007) in the Australian Journal of Earth Sciences — focuses on the timing and chemistry of eruptions rather than their hydrological consequences. How the Malanda volcano's flows redirected what are now Barron tributaries is a question the landscape preserves but science has not yet answered.
That is reason enough to keep looking.
Cheers
Kevin
A Catchment Story: The River Mareeba Crosses But Rarely Sees

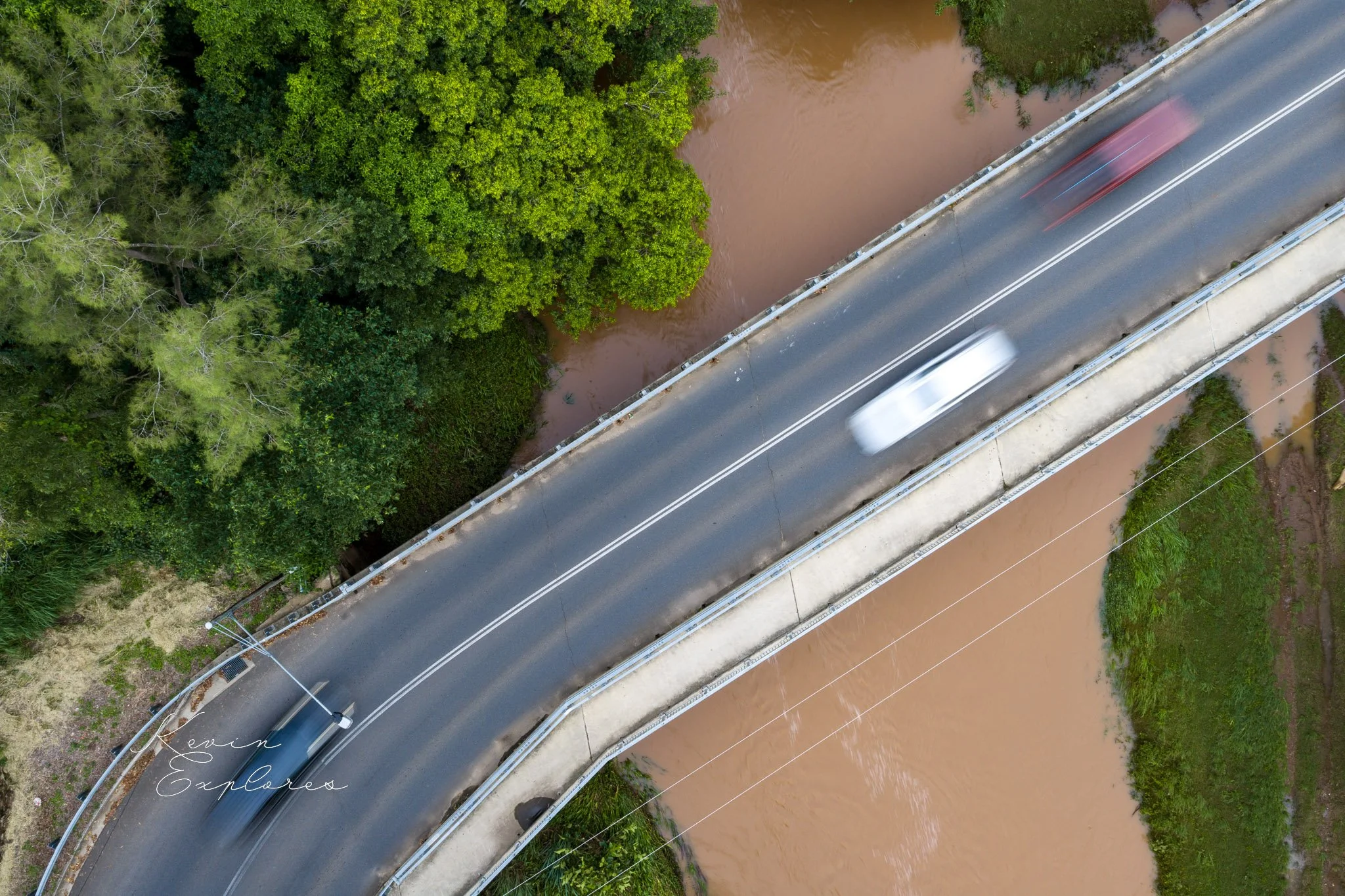

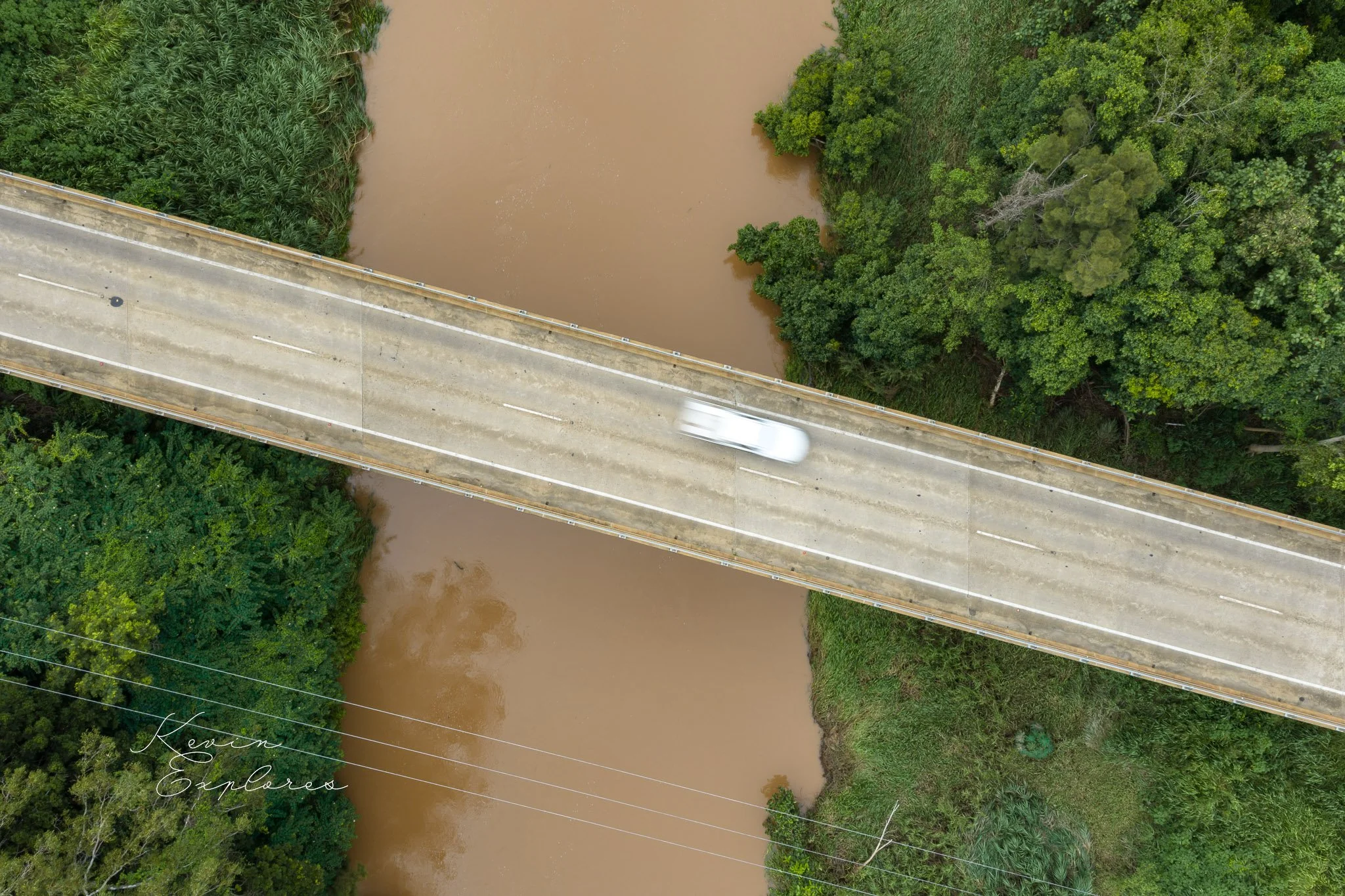

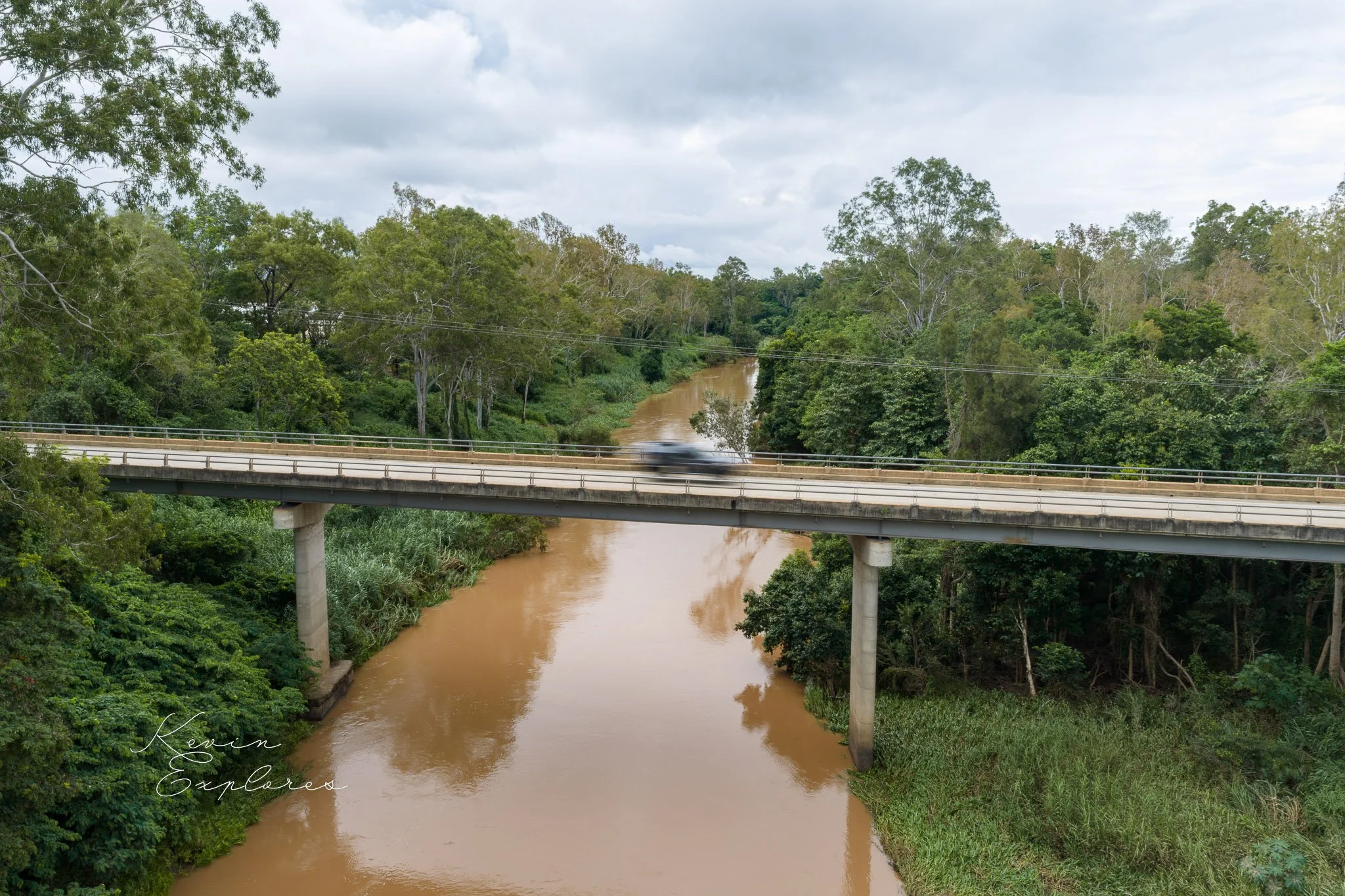

Every day, vehicles cross the Barron River on Mareeba's Kennedy Highway bridge or via Anzac Avenue. A fleeting glimpse of water, trees, then it's gone.

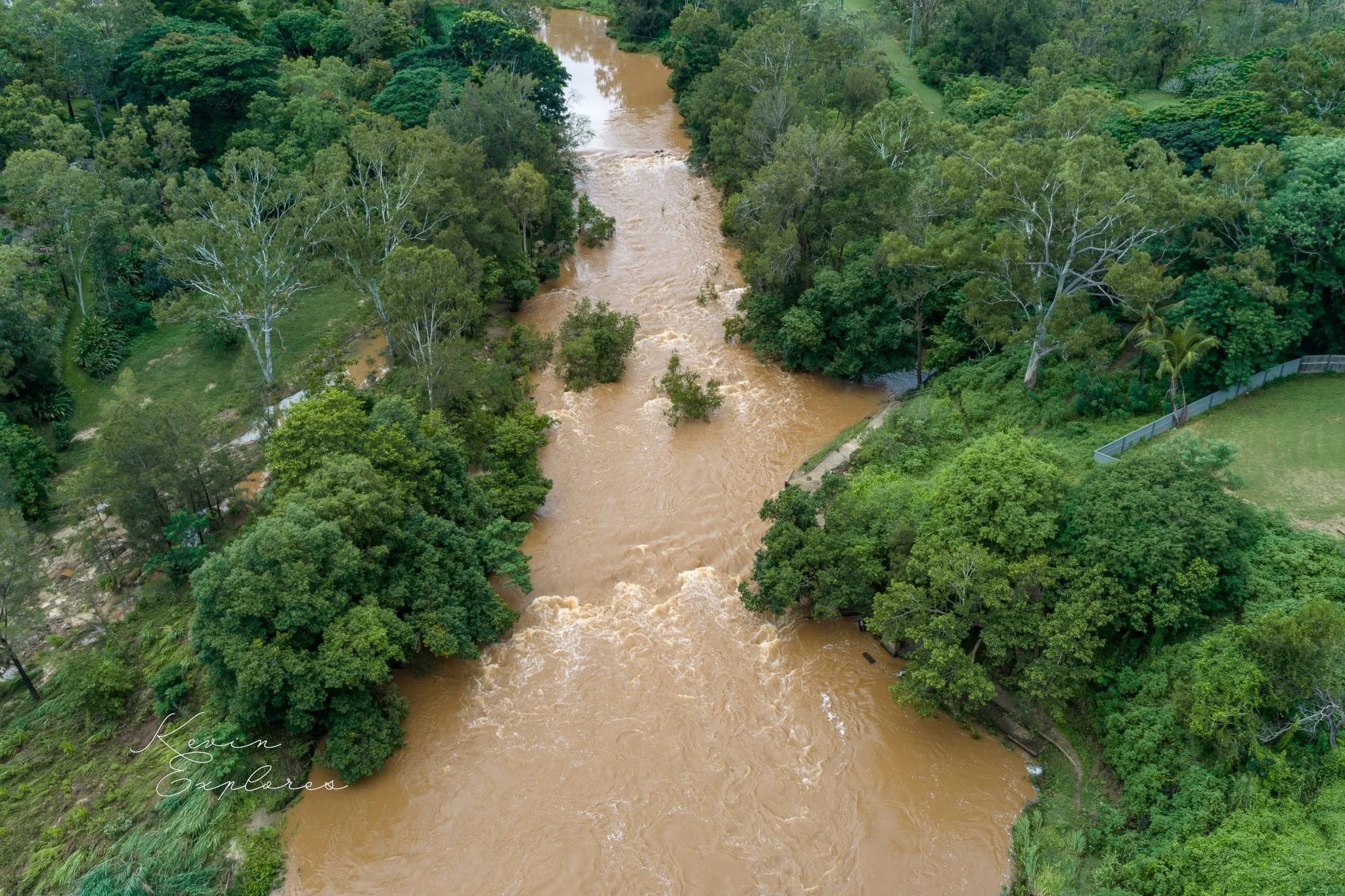

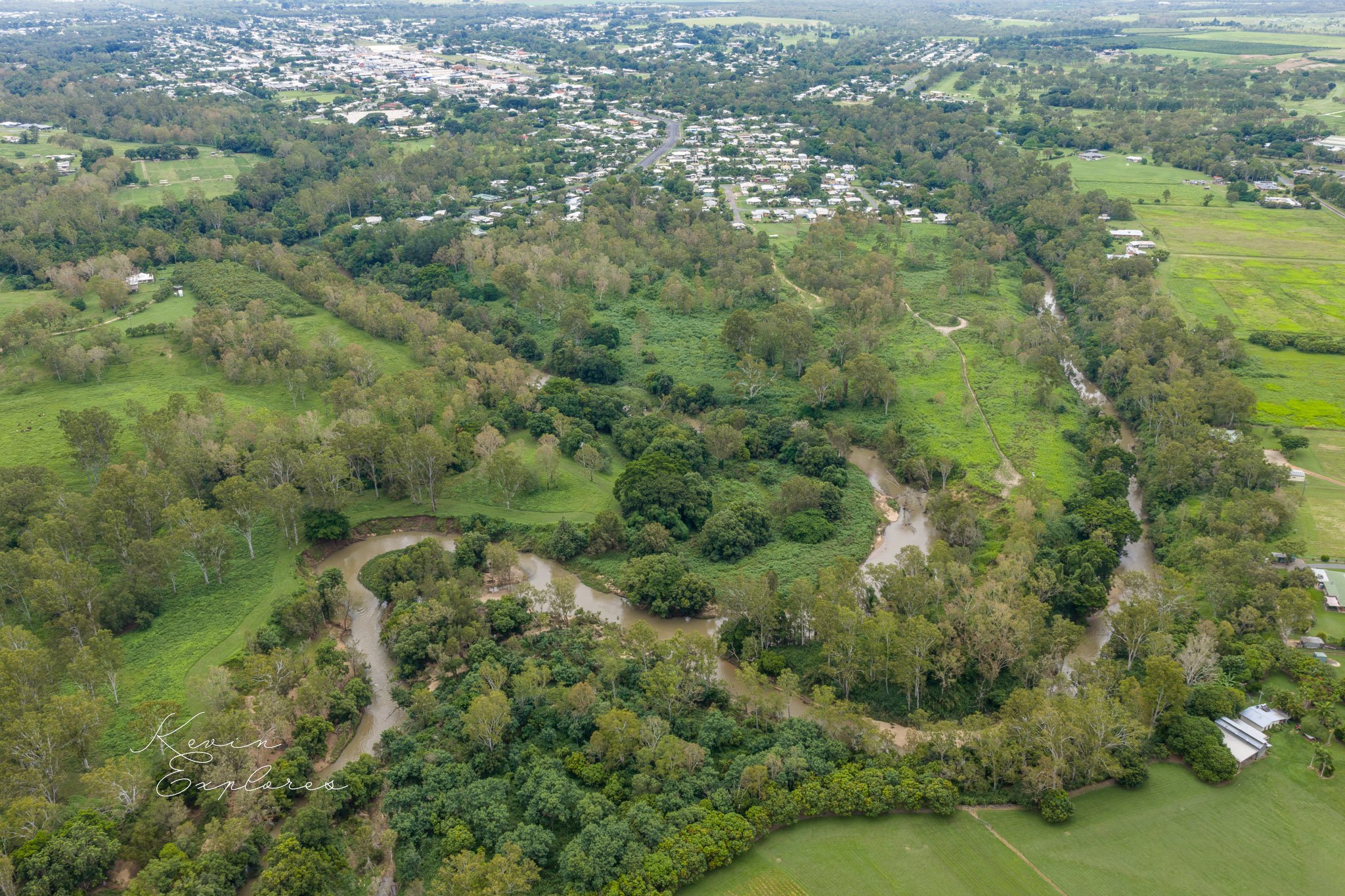

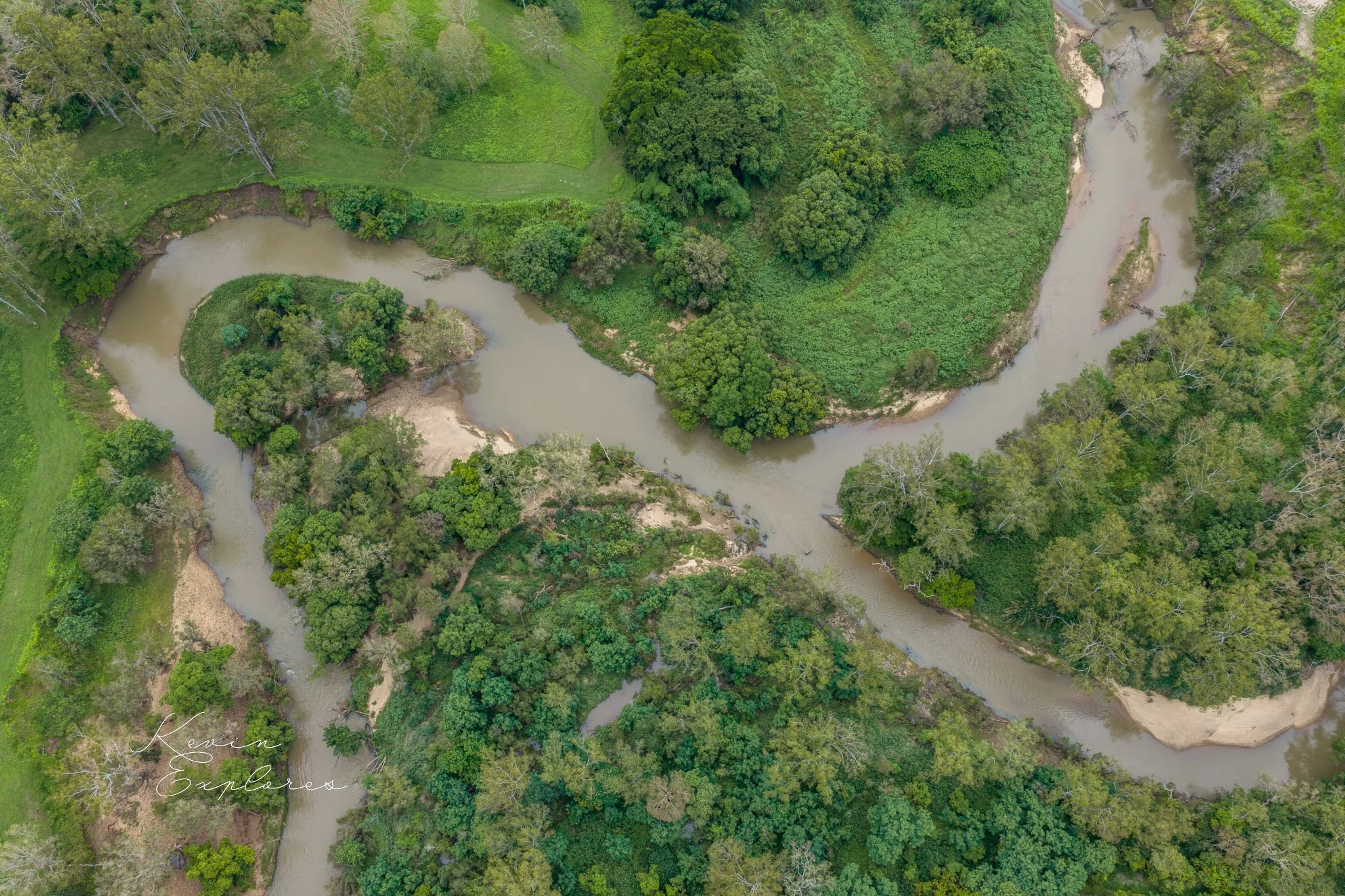

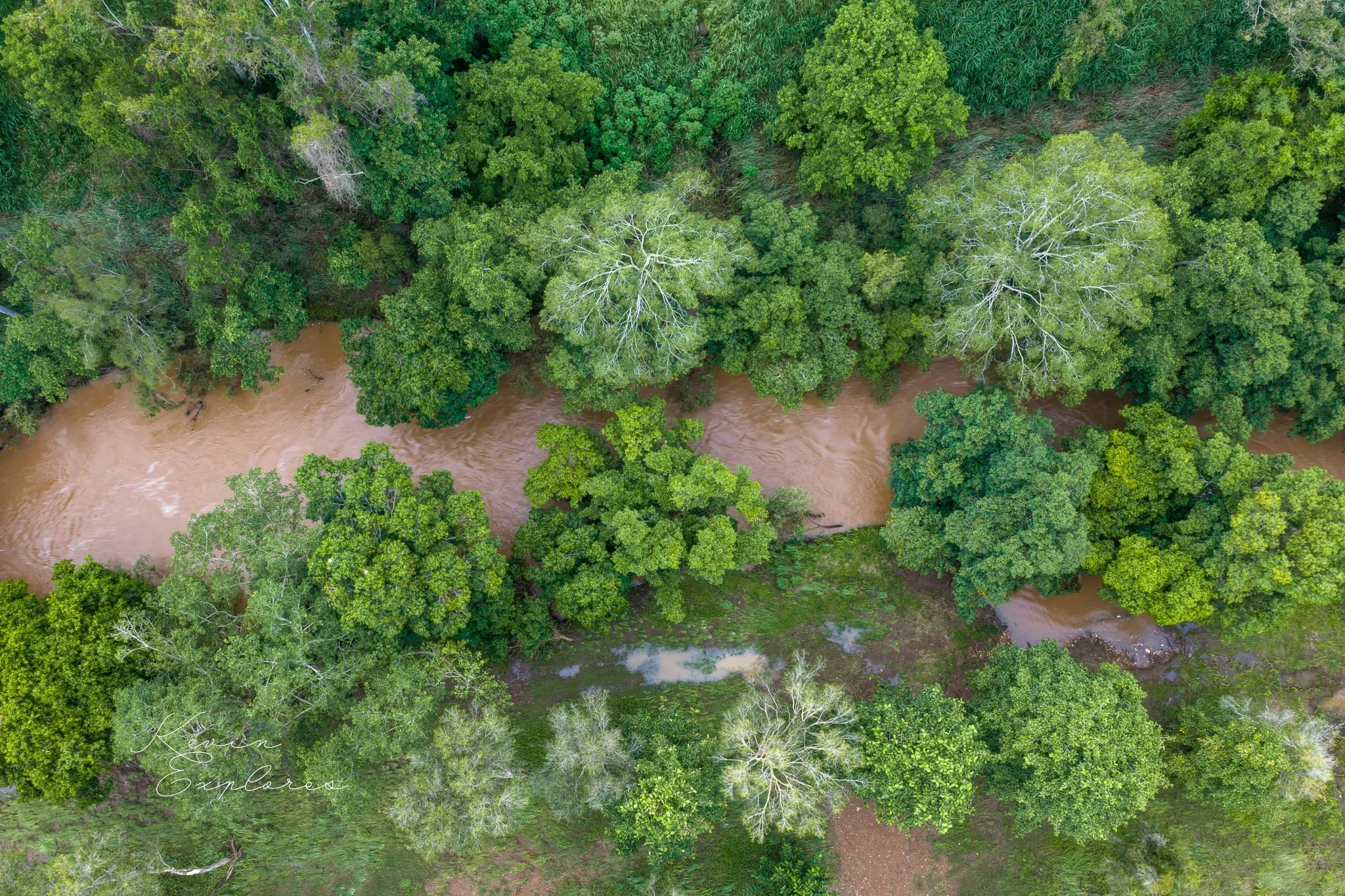

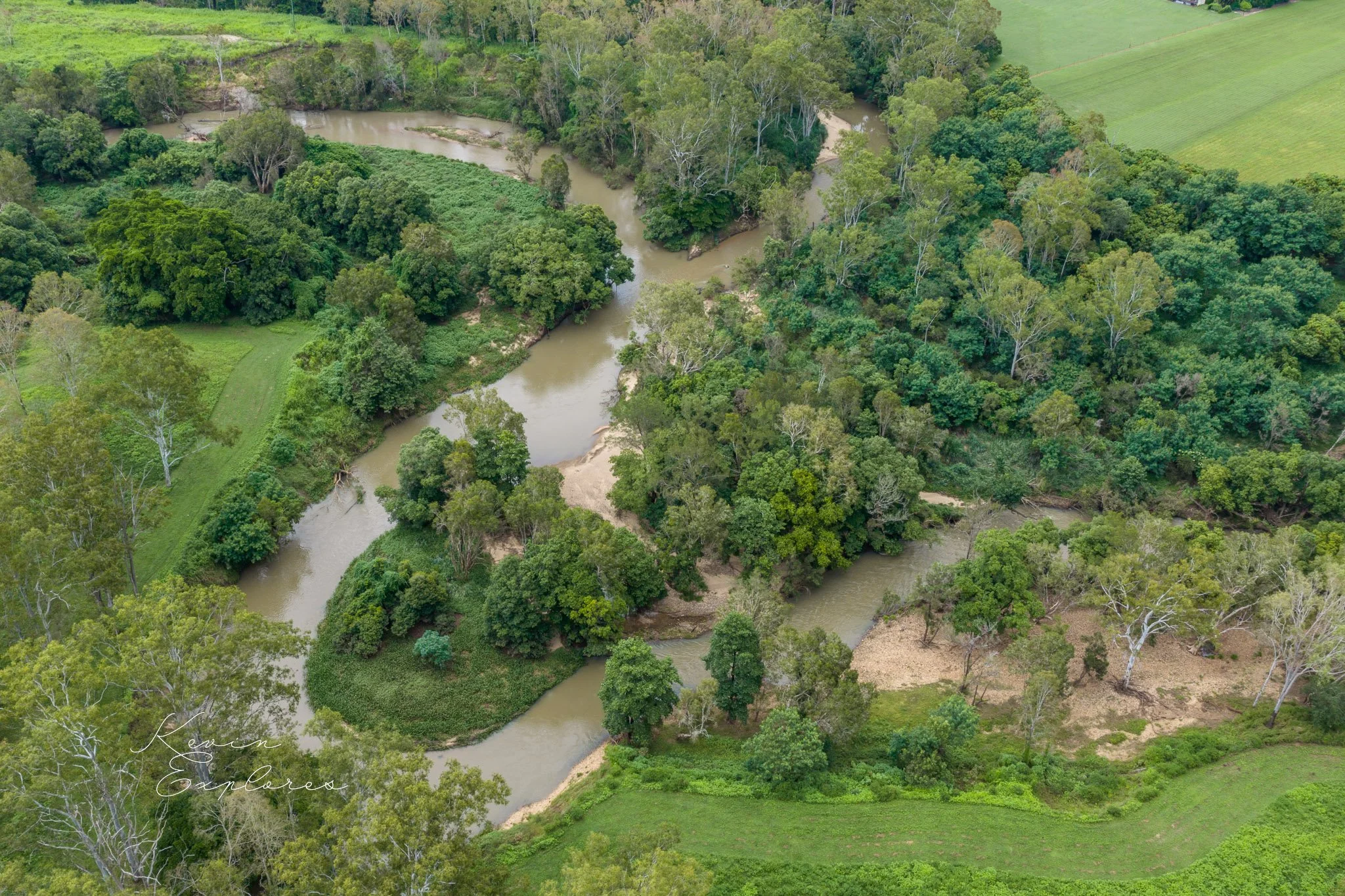

But from above, a different story emerges. The aerial view reveals a riparian corridor threading through the heart of town. Those trees resolve into a diverse canopy – mature figs, eucalypts and paperbarks creating a continuous wildlife corridor.
From this perspective, you can see what the bridge crossing hides.
The story, however, started much earlier.
Mareeba means "meeting of the waters" – the Barron River and Granite Creek joining forces to continue their descent toward the coast.
For thousands of years, this confluence made strategic sense. Rivers as highways, meeting points, resource zones. The Djabugay and Muluridji peoples understood this landscape through the lens of connection – how water links places, carries information, creates corridors through country.
European settlement recognised the same logic, different language. Cobb & Co coach stop, railway station, supply hub. The river became "resource" rather than "relationship," but the geographic truth remained: this is where things meet.
During the wet, this corridor tells upstream stories. Every particle of sediment suspended in that brown water has traveled from the tablelands. The changing colour and swirling patterns signal where it's been raining, what land it's crossed, the journey from volcanic soils through granite country and ultimately to the reef.
The Esplanade walking track threads along the western bank – usually a place for quiet walks, for locals who know how to find it. From the air, you can see what they experience: the scale of the canopy overhead, the swimming holes at river bends, the peaceful separation from urban noise just meters away.
This is also the town's water supply corridor, though few think of it that way anymore. Since Tinaroo Dam was built in 1958, seasonal extremes have become steady flow, the river's role shifting from dramatic seasonal event to reliable resource. The wet season reminds us: this is still a dynamic system, still connected to everything upstream.
Mareeba is one of the few towns actually situated on the Barron River – not just near it, on it. The main stem flows right through town, creating opportunities most riverside communities would treasure.
The Esplanade represents our contemporary "meeting place" use – morning walkers, afternoon strollers, locals who've found the access points. It's quiet, understated, functioning as refuge, as connection to something not-urban right in the middle of urban.
Yet the question remains: what does "meeting place" mean for contemporary Mareeba? The confluence still functions geologically, ecologically, hydrologically. The corridor still offers space for human and non-human communities to intersect with water. But we've marginalised it, made it peripheral rather than central – not activated like town centres or sports fields, but present nonetheless.
Other regional towns position their rivers as identity-makers, gathering points, defining features. Mareeba is actually situated ON the Barron River – a rarity in the catchment – yet relatively few residents could tell you where to access it or what makes it significant.
The wet season creates visibility. The high flows, the dramatic colour, the reminder that this system connects to everywhere upstream and downstream.
Discover, or rediscover, your river. The meeting place is still there, still functioning, still waiting.
Cheers,
Kevin

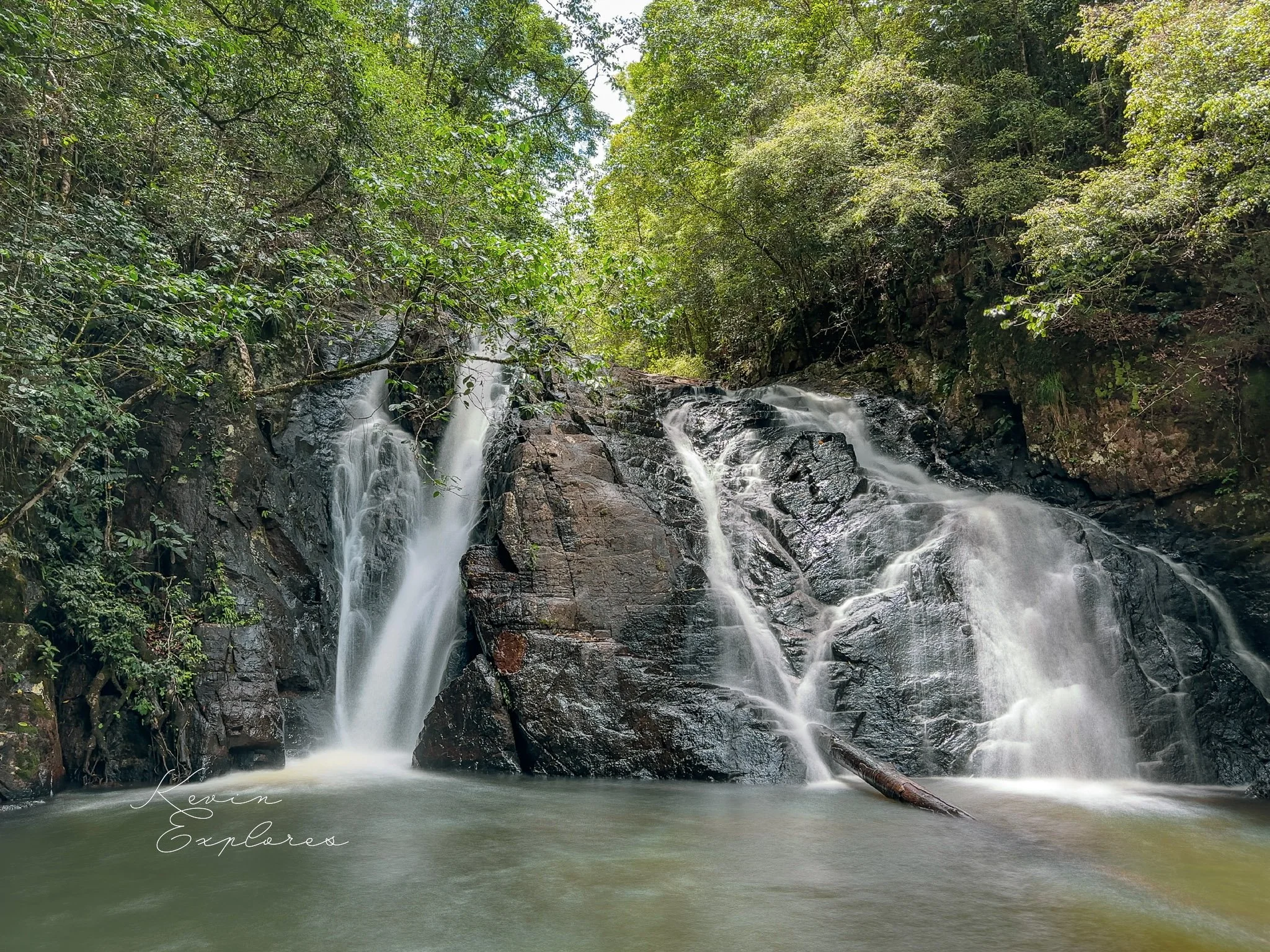

Emerald Creek - A Different Personality
Standing at Barron Falls last week, I found myself reflecting on the differences between the country and geology of the gorge compared to the granite landforms at Emerald Creek, a completely different "personality" despite being just 30 minutes from the falls.
Waterfalls are windows into geology - they expose the deep rock architecture that's usually hidden beneath soil and vegetation. What you're seeing at each waterfall isn't just water and scenery, it's a reveal of the fundamental geological story shaping that entire landscape.
That contrast got me planning a drone flight today to capture the differences. Weather had other ideas - rangers closed access to Emerald Creek - so I'm drawing on images from my library. Many of you will visit Emerald Creek, and understanding what you're seeing adds another layer to the experience.
Here's what I've come to understand: Barron Falls flows over metamorphic rocks from the ancient Hodgkinson Formation - sediments laid down on an ancient seabed, then transformed by heat and pressure but never melted. These denser rocks have a compact character.
Emerald Creek flows through granite that intruded into those same metamorphic rocks millions of years later - molten magma that pushed up from below, slowly cooling deep underground. As erosion gradually stripped away the overlying rock, that release of pressure caused the granite to fracture along those geometric joint patterns you can see - which then became pathways for water to exploit and carve even deeper.
Those fractures do something else too: they create aquifer systems within the granite. Water infiltrates and moves through this network of joints, which is why these granite creeks maintain flow year-round, even through the dry season when many other creeks stop running. The flow reduces, but it doesn't stop.
Here's something that surprised me: those rounded granite boulders you see? Much of that rounding happens underground through chemical weathering along the joint planes. Water moving through the fractures slowly dissolves and rounds the granite blocks before they're even exposed. That's why you sometimes see these smooth, rounded boulders appearing to emerge from the ground, seemingly unconnected to surrounding rock - they were shaped beneath the surface, then erosion of surrounding material revealed them and surface weathering continues shaping them further.
The differences you can see: Granite creates those blocky, stepped cascades where water moves across angular benches and pools. The rock itself is lighter - greys and pinks rather than the darker, denser metamorphic tones at Barron.
Those lines cutting through? Dykes - even younger injections of molten rock that sliced through the already-solid granite. At Emerald Creek, the major waterfall flows over a 35m wide diagonal dyke. The dyke rock is harder and more resistant to erosion than the surrounding granite, creating a natural barrier that the creek cascades over.
Next up in this series: how water behaves completely differently again when it flows over basalt - the youngest volcanic rocks on the Tablelands. Three rock types, three distinct waterfalls, three windows into the geological history beneath our feet.
Barron Falls in Geo Context
Standing at Barron Falls this afternoon, I'm reminded that understanding the rivers geo context - ancient seabed metamorphosed, volcanic disruption, river capture, ongoing erosion - makes the beauty so much more profound.
Foundation: Ancient Metamorphic Basement
The Atherton Tablelands sits on Hodgkinson Formation metamorphics - originally seabed sediments deposited in a marine basin during the Paleozoic (roughly 400-300 million years ago). These sediments were subsequently metamorphosed through heat and pressure during tectonic events, creating the folded, foliated rocks that form the basement across this region. This provides the ancient foundation upon which everything else was built.
Granite Intrusions
During the later Paleozoic and early Mesozoic, massive granite plutons intruded into these metamorphic rocks as molten magma cooled slowly underground. These granites are visible in various locations across the tablelands and created localised variations in rock strength and erosion resistance that influenced subsequent landscape development. The contact zones between granite and metamorphics often create distinctive landscape features.
Volcanic Capping
Much more recently (Pliocene to Pleistocene, roughly 5 million to 10,000 years ago), extensive basaltic volcanism covered significant portions of the tablelands with lava flows. These created the relatively flat-topped plateau topography and fertile volcanic soils that characterize much of the region today. The volcanic episode included the maars, shield volcanoes, and scoria cones - Mt Quincan, the Wongabel cones, crater lakes like Eacham and Barrine.
The Eastern Escarpment
The dramatic eastern escarpment represents the boundary where the tablelands plateau drops steeply toward the coastal plain. This feature reflects both structural geological controls (faulting and differential erosion of rock types) and the ongoing process of escarpment retreat as erosion works headward into the plateau. In places, the escarpment exposes the geological layer cake - volcanic rocks above, metamorphic basement below.
River Capture and Accelerated Incision
The Barron River's dramatic gorge cutting was significantly accelerated by river capture caused by volcanic activity. Originally, the paleo-Barron flowed westward from the Atherton Tablelands toward the Gulf of Carpentaria as part of what would become the Mitchell system. However, basaltic lava flows from Bones Knob filled the ancient river channel near Biboohra, blocking the westward drainage route. This volcanic damming forced the river to find a new course, diverting it eastward toward the coast. This capture event dramatically increased the hydraulic gradient - instead of the gentle westward slope to the Gulf, the river suddenly had the steep eastern escarpment to descend. The increased stream power from this much steeper gradient accelerated downcutting deep into the metamorphic basement, carving the dramatic gorge we see today.
The timing of this capture - relatively recent in geological terms, post-dating the lava flows that caused it - helps explain the gorge's youthful, actively incising character. The Biboohra lava flows thus represent a critical moment when volcanic activity fundamentally re-organised the regional drainage pattern and set in motion the aggressive erosion that created Barron Falls and Gorge.
Mt Quincan: Young Volcanic Fire on the Atherton Tablelands
Aerial perspectives on one of Australia's youngest volcanoes
This morning, I had the privilege of capturing Mt Quincan from my aircraft—a perspective that reveals the true character of this remarkable volcanic feature on the Atherton Tablelands. For anyone interested in the dramatic geological forces that shaped Far North Queensland, Mt Quincan represents a fascinating chapter in a volcanic story that spans 7 million years.
A Shift in Volcanic Character
Mt Quincan stands 189 metres above the surrounding landscape near Yungaburra, its steep-sided profile immediately distinguishing it from the older, gentler shield volcanoes that characterise much of the Tablelands. This distinction isn't merely aesthetic—it represents a fundamental change in the nature of volcanic activity in this region.
According to research by Whitehead et al. (2007) published in the Australian Journal of Earth Sciences, the Atherton Basalt Province experienced a dramatic shift in eruption style around 1 million years ago. The early volcanic period (7.1 to 1 million years ago) was dominated by effusive eruptions that built large shield volcanoes like Malanda and Hallorans Hill, with voluminous lava flows that filled ancient valleys and created the elevated plateau we know today.
But around 1 million years ago, something changed. The voluminous shield-building eruptions ceased, replaced by smaller, more explosive events that created pyroclastic features—cinder cones like Mt Quincan, and maar craters like nearby Lakes Eacham, Barrine, and Euramoo.
The Formation of a Cinder Cone
Mt Quincan is classified as a cinder cone (also called a scoria cone), formed when gas-rich magma reaches the surface and expands rapidly. This expansion fragments the molten rock into small pieces called cinders or scoria, which cool quickly in the air before landing around the vent. Layer by layer, these fragments build a steep-sided cone with slope angles typically between 30 and 40 degrees—much steeper than the gentle slopes (less than 5 degrees) of shield volcanoes.
The crater at Mt Quincan's summit measures approximately 650 metres across and now contains a small lake and swamp. Radiocarbon dating of sediments within this crater by Kershaw (1971) yielded an age of just 7,250 years, making Mt Quincan one of the youngest volcanic features in the Atherton Basalt Province. This places its eruption well within the period of human habitation in the region.
Aboriginal Oral History
The young age of Mt Quincan and other recent volcanic features on the Tablelands has profound cultural significance. Dixon (1972) recorded Aboriginal oral traditions that describe volcanic eruptions in remarkably accurate terms—stories that speak of fire and flames erupting from rocks and rains of stones falling on the surrounding landscape. For Lakes Barrine, Eacham, and Euramoo, Aboriginal people tell specific stories of explosive events that created these maar craters.
Given Mt Quincan's age of just over 7,000 years, it's entirely possible that Aboriginal oral histories preserve actual eyewitness accounts of this volcano's formation—a remarkable example of intergenerational knowledge transmission spanning thousands of years.
Understanding the Volcanic Evolution
The transition from shield volcanoes to cinder cones reflects changes in the nature of the magma source beneath the Atherton Tablelands. The early voluminous tholeiitic basalts that built the shield volcanoes were generated by extensive partial melting at higher levels in the mantle. These massive eruptions would have depleted the upper mantle source region of material.
Following this depletion, later magmas came from progressively deeper levels in the mantle, resulting in smaller volumes of more alkalic basalts. These deeper-sourced magmas often contain more volatiles (dissolved gases), which contribute to the explosive character of cinder cone eruptions.
This pattern—early voluminous tholeiitic flows followed by later, smaller-volume alkalic eruptions—is not unique to the Atherton Tablelands. Similar progressions are observed in the Newer Volcanics Province of Victoria and even in the evolution of individual Hawaiian volcanoes, suggesting this represents a fundamental process in intraplate volcanic systems.
The Aerial Perspective
From the air, Mt Quincan's character becomes immediately apparent. The steep, vegetated slopes rise abruptly from the surrounding agricultural lands, their conical form unmistakable. The crater rim creates a distinctive circular pattern, and on clear days, you can see the small lake nestled within.
What strikes me most from this aerial vantage point is the contrast between Mt Quincan and the older volcanic landscapes around it. The gentle, rolling hills to the west represent the eroded remnants of much older shield volcanoes and lava flows. Mt Quincan, by comparison, stands proud and steep-sided, its relative youth meaning erosion has barely modified its original form.
The rich red soils surrounding the volcano—weathered from volcanic basalt over thousands of years—support the productive dairy farms and crops that have made the Atherton Tablelands one of Queensland's most important agricultural regions. It's a powerful reminder that volcanic landscapes, while born of destruction, ultimately create some of the most fertile lands on Earth.
Part of a Larger Story
Mt Quincan is just one piece in a much larger volcanic puzzle. The Atherton Basalt Province contains 65 identified eruptive centres across approximately 2,500 square kilometres. These range from the 7.1 million-year-old Western Creek flows (the oldest dated eruption in the province) through to maar craters that may be less than 10,000 years old.
The province shows no systematic pattern in the location of volcanic centres over time—unlike hotspot tracks such as Hawaii, where volcanoes get progressively younger along a linear chain as the tectonic plate moves over a fixed mantle plume. Instead, eruptions occurred across an approximately 80-kilometre-diameter region throughout the province's 7-million-year history. This suggests the volcanic activity tapped a large, relatively stationary source region in the lithospheric mantle, rather than a narrow conduit from deep in the Earth.
A Living Laboratory
For aerial landscape interpretation, the Atherton Tablelands offers an exceptional natural laboratory. Within a small geographic area, you can observe shield volcanoes, scoria cones, maar craters, and a rare diatreme (Mt Hypipamee), each formed by different volcanic processes. Understanding how these features formed—and why they formed where and when they did—provides insights into the deep processes operating beneath Australia's seemingly stable crust.
Today's flight over Mt Quincan reminds me why I'm so passionate about aerial landscape interpretation. From ground level, you see trees, farms, and roads. From the air, you see geological time—the deep forces that built mountains, filled valleys with molten rock, and created explosive craters. You see the interplay between ancient bedrock, volcanic landscapes, erosional processes, and human land use.
Every flight is an opportunity to read the land's story, and Mt Quincan's story is particularly compelling—a young volcano in a landscape shaped by millions of years of volcanic activity, standing as testament to forces that remain active beneath this seemingly peaceful agricultural plateau.
Practical Information for Visitors
Mt Quincan can be visited via the Mt Quincan Crater Retreat (private property), which offers luxury treehouses and walking trails around the crater rim. The crater rim walk provides stunning views of the surrounding rainforest and the crater itself. Interpretive signs provide information about the volcano's geology and the area's rich biodiversity.
Nearby volcanic features include:
Lake Eacham and Lake Barrine (maar craters with walking tracks and swimming)
Mt Hypipamee (diatreme crater with viewing platform)
The Seven Sisters (a series of cinder cones along a fissure)
Hallorans Hill (shield volcano at Atherton)
For those interested in understanding the region's volcanic diversity, I've previously written about the different volcanic types found on the Tablelands, which you can find on my blog.
References:
Whitehead, P.W., Stephenson, P.J., McDougall, I., Hopkins, M.S., Graham, A.W., Collerson, K.D. and Johnson, D.P. (2007). Temporal development of the Atherton Basalt Province, north Queensland. Australian Journal of Earth Sciences, 54:5, 691-709.
Kershaw, A.P. (1971). A pollen diagram from Quincan crater, north-east Queensland, Australia. New Phytologist, 70, 669-681.
Dixon, R.M.W. (1972). The Dyirbal Language of North Queensland. Cambridge University Press.
Strenekoffs Crater: A Hidden Window into Deep Time
Aerial landscape interpretation reveals one of the Atherton Tableland's oldest volcanic features
Flying over the Atherton Tablelands, your eye naturally gravitates toward the familiar—Lake Eacham's perfect circular form, Lake Barrine's rainforest embrace, the steep cone of Mt Quincan. But nestled in the patchwork of cleared farmland and remnant forest on the tableland's eastern edge lies a less celebrated maar crater, one that holds secrets reaching back nearly 200,000 years.
Strenekoffs Crater doesn't appear in tourism brochures. You won't find walking tracks around its rim or swimming platforms on its waters. Yet from the air, this 650-metre-wide depression tells a story as dramatic as any in the region—a story of violent volcanic birth, climatic upheaval, and the patient accumulation of sediments that record environmental changes across multiple ice ages.
A Violent Beginning
Imagine this landscape 190,000 years ago. The tableland, already ancient in its granite foundations, experiences a surge of basaltic magma rising from the mantle. As the molten rock ascends, it encounters something that transforms a relatively benign volcanic event into catastrophe: groundwater.
The meeting is explosive. Superheated water flashes to steam faster than it can escape. Pressure builds to breaking point. Then—eruption. Not the leisurely lava flows that built shield volcanoes like Hallorans Hill, nor even the fire-fountain spectacle that created cinder cones. This is phreatomagmatic fury: steam-driven blasts that excavate rather than construct, sending volcanic bombs arcing through the air and leaving behind a gaping crater blasted into the bedrock.
The crater we see today from the air—that gentle depression in the landscape, softened by millennia of weathering and infill—was born in violence.
The Science of Silence
Here's where Strenekoffs Crater becomes intriguing from a scientific perspective, not for what we know, but for what remains uncertain. Unlike its neighbours Lake Eacham (dated to around 9,000 years) and Lake Barrine (approximately 17,000 years old), Strenekoffs has never been successfully dated by radiometric methods.
The reason lies in what geologists delicately term "complex stratigraphy." When researchers from Monash University, led by palynologist Peter Kershaw, drilled core samples from Strenekoffs in the early 1990s, they found sediment layers that were disturbed, mixed, or discontinuous. The neat chronological layering that makes nearby Lynch's Crater a paleoenvironmental goldmine simply doesn't exist here.
But science found a workaround. By comparing fossil pollen assemblages from the base of cores drilled at both Strenekoffs and Lynch's Crater, researchers could correlate the two sites biostratigraphically. The ancient pollen—microscopic grains preserved for hundreds of thousands of years—told the same vegetational story. The conclusion: Strenekoffs Crater likely formed during the same Middle Pleistocene volcanic episode as Lynch's Crater, placing its age at more than 190,000 years.
Think about that time depth. When Strenekoffs exploded into existence, anatomically modern humans had only recently emerged in Africa. Australia would remain unpeopled for another 140,000 years. Giant marsupials—Diprotodon, enormous kangaroos, marsupial lions—roamed a landscape that oscillated between rainforest and sclerophyll woodland as climate fluctuated through glacial cycles.
Reading the Aerial View
From the aircraft, what distinguishes a maar crater from other volcanic landforms? Several features become apparent:
The Depression: Unlike the constructional cones of shield volcanoes or scoria cones that rise above the surrounding terrain, maar craters are predominantly excavational. Strenekoffs sits as a broad, shallow bowl—70 metres deep originally, though centuries of sediment accumulation have partly filled it. The eye reads this negative space differently than the positive relief of a volcanic cone.
The Rim: Maar craters typically have a subtle rim of ejecta—the material blasted out during the initial explosion. At Strenekoffs, 190,000 years of erosion have subdued this feature, but from the right angle, the gentle elevation change around the crater's perimeter becomes visible, marked by the transition from cleared pasture to remnant forest.
Drainage Patterns: The crater's breach—where water overtopped the lowest point in the rim—has determined drainage for nearly 200 millennia. From above, you can trace how water moves across this landscape, following paths established when mastodons still walked the earth.
Land Use Patterns: The contrast between rich basaltic soils and the crater's infilled sediments often creates distinct vegetation or agricultural patterns visible from the air. These aren't random—they're a direct expression of the underlying geology, itself a product of ancient volcanism.
The Atherton Basalt Province Chronology
Strenekoffs Crater forms part of a remarkable volcanic province spanning 2,500 square kilometres and 7 million years. The Atherton Basalt Province contains 65 identified eruptive centres, each adding a chapter to the region's geological story.
The volcanic history here shows a clear progression:
7.1–2.8 million years ago: Large shield volcanoes erupted voluminous fluid lavas that filled valleys and built broad, gentle-sloped mountains. Jensenville and Malanda volcanoes typify this era, their flows extending tens of kilometres, some overflowing the Great Escarpment to cascade down to the coastal plain.
2.0–1.0 million years ago: A second pulse of shield volcano activity, though less voluminous than the earlier phase. Bones Knob, Lamins Hill, and Campbells Hill date to this period.
1.0 million years ago–present: The style changed dramatically. Instead of massive shields, the province produced smaller pyroclastic vents—cinder cones and maars. This shift signals fundamental changes in the magma supply and eruption dynamics. The province was waning, but in its decline, it created some of its most spectacular features.
Strenekoffs sits within this late phase, one of nine maar craters punctuating the tableland. These maars represent the province's final gasp—smaller volume eruptions, but no less dramatic in their violence.
The Lynch's Crater Connection
Understanding Strenekoffs Crater requires understanding its more famous neighbour. Lynch's Crater, just a few kilometres away, has become one of Australia's most important paleoenvironmental research sites, yielding a continuous pollen record spanning 230,000 years—one of the longest terrestrial records in the Southern Hemisphere.
From this single site, scientists have reconstructed:
Multiple glacial-interglacial cycles
The arrival of humans in Australia around 45,000–50,000 years ago
The extinction of Australia's megafauna
Aboriginal fire management practices spanning millennia
Climate oscillations driven by ice volume in the Northern Hemisphere
Sea level changes and their impact on regional rainfall
When Kershaw and colleagues drilled Strenekoffs, they hoped it might provide a parallel record. The complex stratigraphy dashed those hopes, but the biostratigraphic correlation it enabled remains valuable—it places Strenekoffs within the same ancient timeframe, expanding our understanding of volcanic activity during the Middle Pleistocene.
Interpreting Volcanic Landscapes from the Air
One of the privileges of aerial photography in this region is reading volcanic histories written in topography. Each volcanic landform has a distinctive signature:
Shield Volcanoes like Hallorans Hill display gentle, dome-like profiles—slopes typically less than 10 degrees that spread from a central high point. From above, they appear as broad swells in the landscape, their radial drainage patterns like wheel spokes.
Cinder Cones such as Mt Quincan show steeper sides (30-40 degrees) and more conical forms. Their craters are often preserved at the summit, visible as circular depressions.
Maars like Strenekoffs, Lake Eacham, and Lake Barrine present as nearly circular depressions with low surrounding rims. When water-filled, they're unmistakable—perfect circles in the landscape. When drained or infilled, they require a more trained eye to identify.
Diatremes like Mt Hypipamee are the most violent expression—narrow, deep craters blasted by gas-charged magma rising at velocities up to 10 metres per second.
Each form tells a story of eruption style, magma composition, and interaction with groundwater. Together, they map the evolution of the entire volcanic province.
The Soils Story
Flying over the patchwork of agriculture that now dominates the Atherton Tablelands, the connection between volcanism and land use becomes obvious. The rich, red basaltic soils weathered from ancient lava flows support dairy farming, coffee plantations, avocado orchards, and fields of maize. These soils—the legacy of volcanic activity stretching back millions of years—drew European settlers and sustain intensive agriculture today.
But they also drew Aboriginal people, who recognized the productivity of basaltic country and managed it with fire for potentially 50,000 years. The pollen record from Lynch's Crater shows a dramatic increase in charcoal around 45,000 years ago, coinciding with human arrival. This isn't random burning—it's evidence of systematic landscape management that maintained more open, productive vegetation.
From the air, you can still read this history. Remnant rainforest clings to the steeper slopes and crater rims—places that escaped both Aboriginal fire management and European clearing. The contrast between dense green rainforest and open pasture or crops maps directly onto topography and underlying geology.
Geodiversity and Heritage
The Atherton Tablelands represent one of Australia's most geologically diverse regions. Within a 50-kilometre radius, you can find:
Granite batholiths over 300 million years old
Metamorphosed Palaeozoic sediments
Basaltic shield volcanoes 3 million years old
Crater lakes less than 10,000 years old
Some of the world's oldest rainforest lineages growing on volcanic soils
Strenekoffs Crater contributes to this geodiversity. While it may lack the accessibility of Lake Eacham or the scientific renown of Lynch's Crater, it remains an important element of the region's geological heritage—a 190,000-year-old scar recording a violent moment in the Earth's geological story.
Fire, Forest, and Time
One pattern emerges consistently from paleoenvironmental research on the Atherton Tablelands: the intimate relationship between fire, forest, and climate. The landscape has oscillated between rainforest dominance during warm, wet interglacials and more open sclerophyll vegetation during cooler, drier glacials.
Fire acts as the agent of change. During drier periods, increased burning—whether from lightning strikes during intense dry seasons or from Aboriginal land management—converts rainforest to more fire-tolerant eucalypt woodland. When wetter conditions return, rainforest gradually reclaims the ground, but only if fire frequency decreases.
This dynamic has played out repeatedly over the 190,000+ years since Strenekoffs Crater formed. The landscape we see today from the air—a mosaic of remnant rainforest and cleared farmland—represents just the latest frame in a much longer film of environmental change.
What the Aerial View Reveals
From the ground, Strenekoffs Crater might be unimpressive—another depression in undulating terrain, overgrown with vegetation or converted to pasture. But altitude provides perspective. From the aircraft, patterns emerge:
The crater's circular form, though eroded and partly obscured, remains legible in the landscape. The breach in its rim has controlled drainage for geological ages. The surrounding topography—the product of older volcanic flows and basement granite—provides context. The distribution of forest versus cleared land maps onto soil types determined by underlying geology.
This is what aerial landscape interpretation offers: the ability to read geological time written in topography, to see how ancient processes—volcanic explosions 190,000 years ago, lava flows 3 million years old, tectonic forces that built mountains 300 million years ago—continue to shape human land use today.
Conservation and Interpretation
As pressure grows on the Atherton Tablelands—from agricultural intensification, climate change, invasive species, and development—the importance of conserving and interpreting geological heritage increases. The region's volcanic features tell stories that span from deep Earth processes through climate change and megafaunal extinction to Aboriginal land management and European settlement.
These aren't abstract academic concerns. Understanding the region's geological foundation helps us make better decisions about:
Water resource management in basalt aquifers
Soil conservation on volcanic landscapes
Maintaining remnant rainforest on different soil types
Planning for potential future volcanic hazards (the youngest eruptions may be only 7,000–10,000 years old)
Appreciating the deep time context within which human activity represents a fleeting moment
Strenekoffs Crater, even without tourist infrastructure or extensive scientific study, contributes to this understanding.
A Landscape in Layers
The view from the aircraft reveals what ground-level observation cannot: the layered nature of landscape. At Strenekoffs Crater and across the Atherton Tablelands, we see the accumulation of geological events:
300+ million years ago: Granite intrusions formed the basement, later exposed by erosion
7.1–0.01 million years ago: Basaltic volcanism repeatedly resurfaced the landscape
~190,000 years ago: Phreatomagmatic explosions created maar craters including Strenekoffs
50,000 years ago: Aboriginal people arrived and began systematic fire management
140 years ago: European settlement brought intensive land clearing and agriculture
Each layer remains legible in the landscape for those who know how to read it. This is the essence of landscape interpretation—recognizing that the present terrain represents an accumulation of processes operating across vastly different timescales.
The Question of Future Volcanism
One question visitors to the Atherton Tablelands often ask: could the volcanoes erupt again?
The geological evidence suggests volcanism here has waned but not necessarily ceased. The youngest dated eruptions (Lake Eacham at ~9,000 years, possibly younger undated centres) fall within the Holocene—geologically, the present. The gap since the last eruption isn't unusual for volcanic provinces with intermittent activity.
Aboriginal oral traditions record stories of volcanic eruptions and crater lake formation that align remarkably well with scientific dating. The Dyirbal people's stories of Lake Eacham, Lake Barrine, and Lake Euramoo describe events consistent with phreatomagmatic maar formation—suggesting eruptions witnessed by people.
From a geological perspective, the Atherton Basalt Province remains potentially active. The mantle processes that drove volcanism for 7 million years haven't fundamentally changed. Future eruptions are possible, though their probability and timing remain uncertain.
This adds another dimension to landscape interpretation. We're not just reading a static archive of past events—we're observing a landscape that retains the potential for dramatic geological activity.
Conclusion: Hidden in Plain Sight
Strenekoffs Crater reminds us that significance isn't always obvious. While tourists flock to Lake Eacham's swimming platforms and Lake Barrine's teahouse, Strenekoffs sits quietly in private farmland, its scientific potential recognized but not fully realized, its 190,000-year history known only to specialists.
Yet it's precisely these less celebrated features that often reveal the most about how landscapes work. Strenekoffs, with its complex stratigraphy, teaches us that not every volcanic crater becomes a perfect geological archive. The processes that disturb sediments—erosion, bioturbation, water level fluctuation—are themselves part of the landscape's story. The crater's difficult stratigraphy reflects 190,000 years of environmental dynamism, of wet periods and dry, of forest and grassland, of megafauna and eventually humans, all leaving their marks.
From the aircraft, Strenekoffs appears as a subtle depression in gently rolling country—easily overlooked. But knowing its story transforms the view. That circular form records an explosion that shook the earth nearly 200,000 years ago. Those sediments, however disturbed, accumulated grain by grain through multiple ice ages. That breach in the rim has channeled water along the same path for two thousand centuries.
This is what aerial landscape interpretation offers: the ability to see beyond surface appearance to the deep time processes that created what we see today. Every volcanic cone, every crater, every lava flow contributes to the narrative. Even the less celebrated features—especially the less celebrated features—add essential chapters to the story.
Strenekoffs Crater may not have tourism infrastructure or intensive scientific documentation, but it remains what it's always been: a window into deep time, hidden in plain sight on the Atherton Tablelands.
Explore More from the Air
Want to discover more hidden stories in North Queensland's landscapes?
The Atherton Tablelands and Cape York contain countless geological, ecological and cultural narratives waiting to be revealed from the air. From volcanic craters and granite tors to river systems that tell stories spanning millions of years, each flight uncovers new perspectives on how this ancient landscape continues to shape our present.
Follow Kevin Explores:
Instagram: @kevinexplores for regular aerial imagery and landscape insights
Website: kevinexplores.com.au for in-depth articles and expedition updates
Never miss an article:
Subscribe for email updates when new landscape interpretation articles are published. Head to the contact page and let me know you'd like to receive notifications of new posts. I'll send you updates on volcanic landscapes, river systems, geological deep dives, and aerial photography expeditions across Far North Queensland and beyond.
Whether you're interested in geology, natural history, landscape photography, or simply seeing familiar country through new eyes, there's always another story waiting to be told from altitude.
Kevin Explores combines aerial photography with geological, ecological and cultural landscape interpretation across North Queensland. For more stories of landscape and deep time, visit kevinexplores.com.au
Academic Papers:
Whitehead, P.W., et al. (2007). "Temporal development of the Atherton Basalt Province, north Queensland." Australian Journal of Earth Sciences 54:5, 691-709.
Kershaw, A.P., et al. (1991). "A comparison of long Quaternary pollen records from the Atherton and Western Plains volcanic provinces." In: The Cainozoic in Australia, pp. 288-301.
Kershaw, A.P., et al. (2007). "A complete pollen record of the last 230 ka from Lynch's Crater, north-eastern Australia." Palaeogeography, Palaeoclimatology, Palaeoecology 251:3-4, 23-45.
Online Resources:
Global Volcanism Program: Atherton Basalt Province
Geoscience Australia: North Queensland Volcanic Provinces
Queensland Museum: Atherton Tablelands Geology
Technical Note: Grid reference CA 619817 (UTM 55K, Australian National Spheroid, 1966). Crater dimensions: radius 650m, depth 70m. Classification: maar volcano. Age: >190,000 years (biostratigraphic correlation). Status: undated by radiometric methods.
A Story in Multiple Chapters - The Palmerston Lava Ramp
The basalt ramp beneath the Palmerston Highway was built in several episodes:
Phase 1: The Malanda Volcano (3.4-3.0 Ma)
The earliest basalt flows erupted from the massive Malanda Volcano and flowed down an ancient Johnstone River valley all the way to the coast. At that time, the valley entered the sea at Mourilyan Harbour - basalt has been found in drill holes beneath younger alluvium between South Johnstone township and the harbour, but not near the present mouth of the river!
Phase 2: River Reorganisation
After these flows filled the original valley, new rivers were forced to erode courses on either side of the resistant basalt ramp, forming the ancestral South and North Johnstone Rivers.
Phase 3: Campbells Hill Eruptions
Then Campbells Hill became active in two main phases:
~2.2 Ma - First flows cascading over the escarpment
~1.6 Ma - The final and youngest flows to overflow the escarpment in this area
These new lava flows poured down the newly formed river valleys, forcing the rivers to adjust their courses twice again!
Creating Inverted Relief
This is where it gets fascinating: Because basalt is more resistant to erosion than the softer surrounding metamorphic rocks, something remarkable happened - inverted relief. The river valley filled with lava became a high ridge, while the original valley walls eroded and became the new valley floors!
Since these eruptions, the South Johnstone River, Douglas Creek, and the North Johnstone Rivers have continued to erode deep gorges into the voluminous pile of basalt lavas. At places like Crawfords Lookout, you can see where the North Johnstone River has cut so deeply through the basalt that it has re-exposed the meta-sediments of the Hodgkinson Formation beneath!
The Palmerston Rampart
Today, the Palmerston Highway follows the flat top of this ancient lava ramp down to the coastal lowlands. On either side, deep gorges carved by the North and South Johnstone Rivers flank the highway - a dramatic demonstration of inverted topography.
Seeing the Layers
At Nandroya Falls on Douglas Creek (accessible from Henrietta Creek campground), the rock amphitheatre beautifully displays several horizontal basalt lavas with clear boundaries between individual flows. Below the falls, the creek flows over a flat basalt surface and then over smaller drops, each representing yet another separate basalt flow.
Along walking tracks in the gorge of Douglas Creek, you can see:
- A succession of flat slabs and small falls attesting to the series of separate flows;
- Gas bubble layers preserved in the basalt;
- Small cooling columns (usually sub-vertical) formed as the lava cooled.
At Tchupala and Wallicher Falls, two distinct lava flows are evident - the lower with crude cooling columns, and the upper more massive with curved fracture surfaces.
A Natural Highway
This ramp of basalt lavas proved such a convenient route that it became the natural pathway for the modern Palmerston Highway. The fertile soils developed on the basalt have been instrumental in the development of the magnificent rainforest that now cloaks the park.
It's estimated these flows created a ramp up to 300m thick in places - an almost incomprehensible volume of lava that fundamentally reshaped the landscape, redirected rivers multiple times, and created the route we drive today!
Standing at viewpoints like Crawfords Lookout, you're literally standing on top of ancient rivers of stone, with modern rivers flowing through gorges carved into their flanks below.
Sources: Rocks and Landscapes of the National Parks of North Queensland, 2007, Warwick Willmott, Geological Society of Australia; Temporal Development of the Atherton Basalt, 2007, Whitehead JCU and others.
Mt Fisher and Windy Hill
Today I headed to a meeting at Ravenshoe, leaving early to see what photo opportunities the morning light might offer.
Upper Barron was stunning again.
Two remarkable volcanic remnants on the Atherton Tablelands - Mt Fisher and Windy Hill - caught my attention. These are part of an incredible geological story stretching back millions of years!
Mt Fisher is a shield volcano that was active between 1.47-1.43 million years ago. Shield volcanoes are characterised by their low-angled slopes extending 5 to 15km from the vent, built by voluminous lava flows that were runny enough to travel long distances. This volcano rises 185 metres above the surrounding landscape and sits deep in rainforest, making it a challenging but rewarding photography subject. I drove around Mt Fisher capturing different perspectives and encountering the Beatrice River a few times.
Windy Hill (also called the Ravenshoe volcano) was active about 1.24 million years ago, its lava flows traveled over 25km to the south and southwest. The volcano has a height of 100m and extends about 1500m in radius.
These ancient volcanoes have shaped everything about this landscape - from the fertile red basaltic soils that support the region's famous agriculture, to the rolling topography of the tablelands, to the spectacular waterfalls where creeks tumble over resistant lava flows.
It's humbling to photograph these geological giants and think about the immense forces that shaped this land over millions of years.
And the meeting .... it went well. Got the green light for a collaborative effort on a special geo story on the Cape to start shortly!
The Granite Story of Emerald Creek Falls near Mareeba
Emerald Creek Falls offers a spectacular window into the forces that shape our landscape. Not just a beautiful waterfall—it's an active laboratory demonstrating how rock formed deep underground millions of years ago continues to evolve under the relentless power of water, weather, and time.
Learning to See More Than the Falls
Every time I visit Emerald Creek Falls, I notice something new in the granite—patterns, textures, and formations that catch my eye but leave me puzzled. What causes those smooth curves juxtaposed amongst straight cracks? Why do some rocks look like giant steps? What's the story behind those different-colored bands cutting through the stone?
This article is my attempt to share what I've been able to discover about the granite at Emerald Creek Falls, combining my observations with recently acquired geological knowledge. Even this past weekend, armed with a better understanding of granite processes, I found myself seeing the landscape with fresh eyes—suddenly the patterns made sense, and the rocks began telling their story.
My hope is that by sharing this geological detective work, you too can move beyond just the "wow" of the waterfall to appreciate the complete picture. The falls are spectacular, but understanding the ancient forces and ongoing processes that created them makes the experience so much richer. Let's explore the granite story together.
What is Granite?
Understanding the Foundation Rock
Granite is a coarse-grained igneous rock composed primarily of quartz, feldspar, and mica. It forms deep underground when magma cools slowly, allowing large crystals to develop over thousands of years. This crystalline structure and mineral composition make granite both remarkably durable and susceptible to specific types of erosion—a combination that creates the spectacular landscapes we see at Emerald Creek Falls.
Geology vs. Geomorphology
Two Sides of the Same Story
To understand Emerald Creek Falls, we need to distinguish between geology (how the granite formed) and geomorphology (how it's being shaped).
The geological story began millions of years ago when magma cooled slowly deep in the Earth's crust, creating the granite foundation. During this cooling process, the rock developed natural fracture patterns called joints—systematic cracks that formed as the granite contracted.
The geomorphological story is happening right now. Water exploits these ancient fractures, chemical weathering attacks the feldspar minerals, and physical forces gradually sculpt the landscape. The falls exist because geological structure created the stage, and geomorphological processes are directing the ongoing performance.
Natural Fractures - The Granite's Weak Points
How Cracks Become Landscape Features
The granite at Emerald Creek Falls is crisscrossed by natural fractures called joints, formed through several key processes:
Cooling contraction created the primary fracture network as the granite magma cooled and solidified, developing tension fractures in regular patterns—typically two or three sets at roughly right angles to each other.
Pressure release occurred when erosion eventually exposed the granite at the surface. The enormous pressure from overlying rock was released, causing the granite to expand slightly and develop sheet joints roughly parallel to the surface.
Tectonic stress from regional geological forces created additional fractures aligned with ancient pressure directions, while thermal expansion and contraction from surface temperature changes propagated existing micro-fractures deeper into the rock mass over geological time.
Dykes - Rock Within Rock
When Later Magmas Cut Through Granite
After the granite cooled and solidified, later episodes of magmatic activity generated new magma under pressure. This magma exploited the existing joint systems, injecting itself into fractures and cooling to form dykes—distinct bands of different rock cutting through the granite.
These dykes often have different compositions than their granite host: basaltic dykes appear dark and fine-grained, pegmatite dykes show very coarse crystals, aplite dykes appear light-colored and fine-grained, while quartz veins are nearly pure white quartz.
Their different compositions mean they weather at different rates than the surrounding granite. Resistant dykes like quartz veins stand out as ridges, while less resistant ones create linear depressions that water can follow, adding structural complexity that influences how the creek carves its path.
Active Erosion Processes
How Granite Landscapes are Sculpted
Several erosion processes are actively shaping the granite landscape at Emerald Creek Falls:
Exfoliation occurs as granite expands and contracts with temperature changes, causing curved sheets of rock to peel away like onion layers, creating the smooth, rounded rock faces and dome-like formations.
Joint weathering happens along natural fractures where water enters cracks, chemically weathers the rock, and gradually widens joints into distinct blocks, creating stepped, angular features.
Chemical weathering breaks down feldspar minerals into clay, causing granite to crumble and creating sandy, gritty material called "grus"—a process accelerated by our warm, humid climate.
Hydraulic action from flowing water physically removes loose material, while abrasion from sediment-laden water acts like sandpaper, smoothing and carving the rock.
Biological weathering from tree roots and organic acids from decomposing vegetation also contributes to granite breakdown.
Transition to Visual Evidence
Seeing the Processes in Action
The combination of these geological foundations and active geomorphological processes creates the characteristic granite landscape features you'll see in the following image galleries. Look for smooth water-carved channels following ancient fractures, angular joint-controlled faces where blocks have been removed, rounded exfoliated surfaces where rock sheets have peeled away, and areas of crumbling, weathered granite where chemical processes dominate.
Each photograph tells part of the story—from the ancient cooling fractures that provided the initial weakness, to the ongoing erosion that continues to shape this landscape today.
Reading the Rock Structure
The images in this gallery reveal the fundamental architecture of the granite. Notice how the natural joints create systematic patterns—these fractures formed millions of years ago as the granite cooled, but they control how water moves and where erosion occurs today.
Look for the stepped, blocky appearance where water has exploited joints to remove entire sections of rock. The smooth, curved surfaces show exfoliation in action—pressure release causing rock sheets to peel away. Different weathering patterns reveal variations in mineral composition and the varying resistance of different granite zones.
Water as Sculptor
These images capture erosion in action. Follow the water's path and notice how it preferentially follows fracture lines and softer zones. The plunge pools show hydraulic action at work—water hammering the rock and gradually deepening circular depressions.
Observe how the creek has carved narrow channels along joint systems, and how abrasion has smoothed and polished rock surfaces. The contrast between angular, fractured areas and smooth, water-worn surfaces illustrates the ongoing battle between geological structure and hydrological force.
Your Rock Detective Challenge
What Lies Beneath Your Feet
As you make your way to the falls, don't just focus on the destination—the story is literally beneath your feet! The slabs in the creek reveal the very coarse Tinaroo Granite with its distinctive large potassium feldspar crystals. Look closely and you'll spot small dykes of fine-grained, pink aplite cutting through the granite—these were probably injected during the later stages of granite solidification, like the final brush strokes on a geological masterpiece.
Keep your eyes open for dark, fine-grained fragments called xenoliths—these are pieces of older rocks that got caught up in the granite as it formed, like fossil evidence of what came before. The main waterfall itself owes its existence to geology: its face is formed by a resistant band of aplite dyke over 30 meters thick that refuses to erode as easily as the surrounding granite.
On the northern side, narrow fault fractures have provided pathways for the water, and if you're observant, you'll discover spectacular potholes scoured out by trapped boulders—nature's own rock tumblers in action.
Take your time exploring the rock surfaces as you walk. Every step reveals new clues about this ancient landscape. The complete story isn't just at the waterfall—it's written in the granite beneath your feet, waiting for curious visitors like you to read it.
The Bigger Picture
The wide-angle views in this gallery show how all these processes work together to create the overall landscape. The waterfall exists where it does because of the underlying granite structure—joint systems, dyke orientations, and zones of different rock resistance all influence the creek's path.
Notice how the surrounding hillslopes show the same granite weathering processes on a larger scale. The vegetation patterns often follow geological boundaries, and the overall valley shape reflects millions of years of erosion working along structural weaknesses in the granite.
Conclusion
Ancient Rock, Active Landscape
Emerald Creek Falls demonstrates that landscapes are never static. The granite foundation, formed deep underground millions of years ago, continues to evolve under the influence of water, weather, and biological processes. The fractures that developed as the rock cooled now guide the creek's path. The minerals that crystallized in ancient magma chambers now weather at different rates, creating the varied textures and forms we see today.
Understanding these processes helps us appreciate not just the beauty of the falls, but the dynamic Earth processes that create and constantly reshape our landscape. Every visit to Emerald Creek Falls is a glimpse into deep geological time—where the ancient past meets the active present.
Three Rock Stories at Goldsborough
The Mulgrave River at Goldsborough is a geologist's time machine. Within this valley you can read three distinct chapters of Earth's history, each written in a different type of rock spanning hundreds of millions of years.
The Ancient Foundation: Granite
The oldest story stands high above the valley. The granite cores of Mount Bellenden Ker and Mount Bartle Frere formed between 310 and 260 million years ago, when massive pools of molten rock (magma) pushed upward into Earth's crust. This magma cooled slowly deep underground, crystallizing into coarse-grained granite with large feldspar crystals.
You won't see much of this granite in the riverbed itself—it forms the resistant mountain peaks that tower over the valley. But travel up to Kearneys Falls and you'll find granite boulders that have rolled down from the slopes above, and the falls themselves cascade over granite slabs at the edge of the Bellenden Ker batholith. This is the structural backbone of the landscape, the rock that refused to erode away.
The Deformed Middle: Hodgkinson Metamorphics
The second story is written in the rocks the river actually cuts through. The Hodgkinson Formation began as sediments deposited in a deep marine basin more than 300 million years ago—even before the granite intruded. Over time, these sediments were buried, squeezed, and baked by heat and pressure, transforming them into metamorphic rocks.
What you see in the riverbed today are layered, banded rocks with a fractured, crumpled texture—a record of immense tectonic forces. These meta-sediments proved less resistant than granite. The Mulgrave River preferentially eroded these softer rocks, carving the valley and separating Mount Bellenden Ker from the western tableland. The river found weakness and exploited it, creating the landscape we see today.
The Volcanic Interruption: Atherton Basalts
The youngest story comes from fire, not water. Scattered through the river are outcrops of basalt, formed from lava flows that erupted from the Atherton Volcanic Province only a few million years ago. Around 2 million years ago, The Fisheries Volcano burst out downstream, its lava flows temporarily damming the Mulgrave River.
As the lava cooled, it cracked into polygonal columns—the blocky, almost geometric patterns you can see in the riverbed today.
Three Chapters, One Landscape
Together, these three rock types tell a dramatic story:
Bellenden Ker Granite (280 million years old) — the resistant foundation, forming mountain peaks that anchor the landscape
Hodgkinson Metamorphics (300+ million years old) — ancient, deformed, layered, carrying memories of deep oceans and mountain-building, now preferentially eroded into valleys
Atherton Basalts (2 million years old) — young, volcanic, geometric, frozen remains of a fiery landscape that briefly transformed the valley
At Goldsborough, the Mulgrave River doesn't just carve a path through stone—it carves through time itself, revealing three distinct episodes of Earth's history. The granite stands high, the meta-sediments give way beneath the current, and the basalt platforms create the flat rocks where Malanbarra people have fished for thousands of years. Each rock type plays its role in shaping this landscape where geology, erosion, and culture interweave.
Morphological Development of Coastal Dunes in a Humid Tropical Environment, Cape Bedford and Cape Flattery, North Queensland by Kenneth Pye (1982)
I found this research paper that was helpful in explaining the origins of the development of the dunes. This paper examines coastal sand dunes in a tropical environment in North Queensland, Australia - specifically at Cape Bedford and Cape Flattery, about 50km north of Cooktown. Here's what the research reveals:
What Makes This Study Unique
Coastal sand dunes are typically rare in humid tropical climates because high rainfall and vegetation usually prevent their formation. However, this area has developed some of Australia's largest coastal dune systems despite receiving over 1,700mm of rain annually.
The Dune System
Scale and Size: The dunefield covers more than 500 square kilometers, with some individual dunes reaching:
Over 4km in length
Up to 1km wide
Heights of 80+ meters
Sand extending up to 20km inland from the coast
Types of Dunes Found:
Parabolic dunes - U-shaped dunes that form from localized "blowouts" in vegetation
Elongate parabolic dunes - Long, hairpin-shaped dunes that can stretch for kilometers
Crescent-shaped dunes (lunettes) - Small crescents that form downwind of lakes
Degraded dune areas - Older, weathered dunes now covered by vegetation
Why These Dunes Exist
Several factors combine to create this unusual tropical dune system:
Abundant Sand Supply: The surrounding landscape contains extensive sandstone formations and granites that weather to produce large quantities of quartz sand.
Strong, Consistent Winds: The area experiences powerful southeasterly trade winds, especially during the dry season (May-November), with about 99% of sand-moving wind energy coming from the southeast.
Seasonal Climate: While the area is tropical, it has a distinct dry season when vegetation stress and lower rainfall allow sand movement to occur.
Exposed Coastal Location: The headlands of Cape Bedford and Cape Flattery are directly exposed to the prevailing winds.
Dune Formation and Movement
Most dunes begin as "spot blowouts" - areas where vegetation is destroyed by fire, cyclones, or drought, creating bare patches that wind can erode. Once started, these expand into larger dune systems.
Movement Rates: The study found that active dunes move relatively slowly:
Maximum recorded rate: 5.6 meters per year
Most dunes move less than 2 meters per year
Many dunes are now completely stabilized by vegetation
Environmental History
The research suggests these dunes formed during earlier periods when conditions were more favorable for sand movement - possibly during drier phases of the Holocene (last 10,000 years) or Pleistocene ice ages. Radiocarbon dating of buried organic material indicates some dune activity occurred at least 5,000-6,000 years ago.
Current Status
Today, most of the dunes are stabilized by vegetation, primarily drought-resistant species like Acacia, Melaleuca, and Casuarina. Only about 10% of dunes remain actively moving, and there's limited new sand supply from beaches.
Significance
This study demonstrates that large coastal dune systems can develop and persist in humid tropical environments under the right combination of geological, climatic, and geographic conditions. It challenges the conventional wisdom that such features are restricted to arid or temperate regions.
The research also provides insights into how past climate changes affected landscape development in tropical Australia and helps us understand the complex relationships between vegetation, climate, and landform evolution.
Cape Bedford and Elim Beach: Where The Sea Meets Living Sands
An Aerial Interpretive Journey Through Time
Cape Bedford and Elim Beach form a 50km coastal dune system of global significance, where Mesozoic geology, active aeolian processes, Traditional Owner management, and specialized ecosystems create one of North Queensland's most scientifically compelling landscapes.
Geological Foundation: Mesozoic Sedimentary Sequence
The cliff exposures reveal alternating layers of sandstone and siltstone deposited 95-170 million years ago during the Mesozoic Era. These marine sediments formed in warm, shallow seas when Australia occupied a more tropical latitude. The harder sandstone beds represent higher-energy depositional environments, while softer siltstone layers indicate quieter water conditions with fine sediment deposition.
The present dune system is constructed on this Mesozoic basement, with aeolian sands partially derived from weathering of the underlying sandstone formations. The deeper coloured sand layers exposed in cliff faces show progressive consolidation—actively transitioning toward sandstone formation through compaction and cementation processes observable in real-time.
Duricrust formations cap some elevated areas, representing chemical weathering and precipitation processes typical of tropical climates over geological timescales.
Active Geomorphological Processes: Coastal Dune Dynamics
The dunefield extends 50km north-south and 2-20km inland, representing one of the most extensive coastal dune systems in the humid tropics. Prevailing south-easterly trade winds drive sand transport from beach faces inland, creating a complex dune morphology with heights exceeding 100 meters.
Radiocarbon dating indicates most dunes achieved stability approximately 10,000 years ago during Holocene sea level stabilization. However, the system remains geomorphologically active with:
Deflation processes: Wind erosion exposing different mineral compositions creating the characteristic colour variations (white quartz, orange-red iron oxides, dark heavy minerals)
Vegetation-dune interactions: Pioneer species trapping sand and modifying local wind patterns
Tidal influences: Spring tide cycles exposing different sand sources and transport pathways
The coloured sand exposures represent vertical mineral sorting through aeolian processes, with differential weathering and oxidation creating the distinctive colour banding visible from aerial perspective.
Cultural Knowledge: Traditional Management Systems
This landscape sits within Guugu Yimithirr Country, with traditional boundaries extending from the Endeavour River to Cape Flattery—encompassing approximately 600 square miles of coastal and inland territory. Archaeological evidence indicates continuous occupation for tens of thousands of years.
Traditional fire management regimes shaped vegetation communities across the dune systems. Controlled burning at specific seasonal intervals:
Maintained open woodland structure
Promoted native grass regeneration
Reduced fuel loads preventing catastrophic fires
Created habitat mosaics supporting diverse fauna
The 1942 forced evacuation to Woorabinda disrupted traditional management for eight years, during which more than 25% of the population died. This management gap is still visible in aerial photography through altered vegetation patterns and fire scar distributions.
Contemporary Traditional Owner the late Eddie Deemal (Thiithaarr-warra clan) established controlled access to support cultural education while maintaining landscape protection protocols. His family continues to operate the camp ground.
Landscape Ecosystems: Specialized Adaptations
The dune ecosystems represent extreme edaphic conditions with:
Soil characteristics: Silica sand with minimal water retention, low nutrient availability, high drainage rates
Microclimate: Elevated temperatures, desiccating winds, salt spray exposure
pH conditions: Generally acidic (4.5-6.0) due to leaching and organic matter decomposition
Vegetation communities show remarkable physiological adaptations:
Sclerophyll heathlands dominate with species exhibiting:
Reduced leaf surface area (sclerophylly)
Waxy cuticles reducing transpiration
Deep root systems accessing groundwater
CAM photosynthesis in succulent species
Melaleuca (paperbark) groves occupy moister interdune areas, with:
Specialized root systems tolerating periodic inundation
Fire-resistant bark protecting cambium
Allelopathic compounds reducing competition
Mangrove transitions occur where freshwater springs intersect tidal zones, creating brackish conditions supporting specialized halophyte communities.
Freshwater Springs and Wetland Systems occur where groundwater intersects the surface, creating critical freshwater refugia within the predominantly sandy landscape. Natural springs bubble up on the beach at low tide, creating localized freshwater wetland environments that support:
Specialized hydrophyte communities adapted to seasonal freshwater availability
Amphibian breeding habitats in an otherwise arid landscape
Freshwater lens dynamics where lighter freshwater floats above saltwater intrusion
Critical water sources for terrestrial fauna during dry seasons
These spring-fed wetlands demonstrate groundwater-surface water interactions typical of coastal dune systems, where perched water tables develop above impermeable clay layers within the sand sequence.
Interdune Depressions and Seasonal Marshes form in low-lying areas between dune ridges where:
Seasonal precipitation accumulates in poorly-drained sandy basins
Organic matter accumulation creates localized peat deposits
Specialized sedge and rush communities establish temporary wetland conditions
Migratory waterbird species utilize seasonal habitat during wet periods
Marine ecosystems show high productivity during low tides with extensive intertidal flats supporting echinoderms, crustaceans, and molluscs—indicating healthy nutrient cycling between terrestrial and marine systems.
Historical Development: Adaptive Infrastructure
European settlement patterns demonstrate learning curves in dune environment management:
1886-1942: Cape Bedford Mission established with minimal landscape modification, buildings positioned to utilize natural windbreaks and drainage patterns.
1950s-2000s: Post-reestablishment development at Hope Vale incorporated traditional knowledge about seasonal wind patterns and flood-prone areas.
2000s-present: Eddie's Camp represents sustainable tourism infrastructure:
Buildings positioned within existing Melaleuca groves
Access roads following ridge lines to minimize dune destabilization
Waste management systems designed for sandy soils with high permeability
Road engineering from Hope Vale demonstrates adaptation to geomorphological constraints:
Final 27km uses compacted gravel over sand base
Drainage design accounts for rapid infiltration rates
Route selection avoids active dune faces and seasonal wetlands
Aerial Interpretation Synthesis
From above, Cape Bedford emerges as a dynamic system where:
Mesozoic basement provides structural control for modern processes
Quaternary dune formation creates globally significant geomorphological features
Traditional management maintained ecosystem stability for millennia
Specialized ecosystems demonstrate evolutionary adaptation to extreme conditions
Contemporary development shows successful integration with natural processes
The coloured sand exposures serve as natural stratigraphic sections revealing 10,000+ years of environmental change, wind pattern variations, and vegetation succession cycles—readable from aerial perspective as distinct colour bands representing different climatic periods and sediment sources.
This landscape demonstrates how aerial interpretation reveals process-form relationships invisible from ground level, making Cape Bedford and Elim Beach exceptional examples of integrated geological, ecological, and cultural landscape evolution.
Barron Falls Din Din - more than wow images
During a trip to Kuranda this afternoon, I could not miss the opportunity to visit the Barron Falls (Din Din). Yes, spectacular... but the vista has an equally interesting geo story.
Willmott and Stephenson in "Rocks and Landscapes of the Cairns District" (1989) report: "In the far west area between Kuranda and Mareeba the headwaters of the Barron River gradually retreated westward. In this process they have captured first the Clohesy River near Koah, then what was once the headwaters of the Mitchell River, near Mareeba. The increased flow in the Barron River since these relatively recent captures accounts for the steepness and narrowness of the Barron River Gorge below Kuranda. This gorge has been cut by retreat of the Barron Falls."
Whitehead and Nelson, researchers at JCU, reported in a 2014 paper: "In north Queensland, Australia, the 'Great Divide' forms the border between catchments draining into the Gulf of Carpentaria, including the Mitchell River, and those draining into the Coral Sea, including the Barron River. Until recently, it was commonly proposed that what is now the upper Barron River previously drained into the Mitchell River. However, little evidence was presented, and the assertion has been disputed. Our examination of borehole data, combined with accurate surveying of bedrock in the present Barron River channel, provides definitive evidence that paleochannels of the Mitchell River previously drained what is now the upper Barron River subcatchment. Lava that flowed down these channels at ca 1.79 Ma is evident in some of the boreholes and is exposed in the Barron River channel. The lava flows blocked the river channel, diverting the headwaters of the paleo-Mitchell River east into the Barron River, resulting in the western migration of the Great Divide. The consequent reduction in stream energy available to the truncated headwaters of Mitchell River has led to channel infill and aggradation of more than 40 m since the diversion of the Barron River. Subsurface paleochannels may be directing groundwater across the present drainage divide from the upper Barron River catchment into the Mitchell River catchment."
Wow!
Cheers, K
Lynch's Crater: A 230,000-Year Window into Australia's Past
Today we visited Lynchs Crater.
At first glance, this unassuming swampy depression might not catch your eye, but beneath its surface lies an extraordinary record of Australia's changing landscapes, climate fluctuations, and human impact stretching back 230,000 years.
Lynch's Crater was born in a violent volcanic eruption, creating what geologists call a "maar" - a broad, low-relief crater formed when hot magma contacts groundwater, causing a steam explosion. Located at 760m above sea level and measuring about 700m wide, this crater initially formed a deep lake with steep sides.
What makes this site so valuable to scientists is the continuous accumulation of sediments since its formation. These layers contain pollen, charcoal, and other materials that reveal the environmental history of northeastern Australia in remarkable detail.
The story revealed by sediment cores is fascinating. For the first 40,000 years of its existence, Lynch's Crater was a deep lake with little marginal vegetation. Over time, the basin gradually filled with sediment, with open water conditions persisting for about 120,000 years.
Around 70,000 years ago, enough sediment had accumulated to allow swamp vegetation to invade much of the lake. By 50,000 years ago, swamp vegetation likely covered the entire basin - a condition that continues to the present day, though with changing plant communities over time.
Perhaps the most striking pattern in the pollen record is the cyclical expansion and contraction of rainforest in response to glacial-interglacial climate cycles. Researchers identified seven major vegetation phases:
- 230,000-190,000 years ago: Complex rainforest dominated during this warm, wet interglacial period
- 190,000-130,000 years ago: Drier conditions led to Araucarian vine forest as the climate cooled
- 130,000-70,000 years ago: The Last Interglacial period saw rainforest reach its peak development
- 70,000-45,000 years ago: Early glacial conditions favoured Araucarian forest and increasing sclerophyll vegetation
- 45,000-15,000 years ago: The Last Glacial period coincided with human arrival and increasing fire
- 15,000-2,500 years ago: Sclerophyll vegetation (eucalypts and casuarinas) dominated the landscape
- 2,500 years ago to present: Rainforest recovered somewhat during the Holocene, with periods of swamp forest
One of the most significant findings from Lynch's Crater is the clear evidence of human impact beginning around 45,000 years ago. The sediment record shows an abrupt increase in charcoal that coincides with a decline in fire-sensitive vegetation, particularly Araucaria (kauri pine).
Before human arrival, fire was not a significant feature of this environment. The research suggests that human-induced burning, combined with drier glacial conditions, transformed the landscape by accelerating the replacement of fire-sensitive rainforest with fire-tolerant eucalypt woodland.
Standing at the edge of Lynch's Crater today, it's remarkable to think about how this landscape has transformed over hundreds of thousands of years. Even more thought-provoking is how human intervention 45,000 years ago continues to shape what we see.
For more information, the Kershaw research paper can be found at:
Understanding Volcanic Diversity on the Atherton Tablelands
The Atherton Tablelands in Far North Queensland, Australia, offers a remarkable natural laboratory for understanding volcanic diversity.
For those following, I thought it opportune to demonstrate the types of volcanoes on the Tablelands. This morning I scouted images for this post.
Although there are 65 eruptive centres in the Atherton Basalt Province, most are one of four volcanic types. Prominent examples are found at Hallorans Hill in Atherton, Bones Knob near Tolga, Mt Quincan with nearby Lake Eacham, and Mt Hypipamee - each demonstrating different eruption styles and resulting landforms, despite their close proximity.
Standing at the edge of Atherton township, Hallorans Hill represents a classic shield volcano. Unlike the explosive eruptions many associate with volcanoes, shield volcanoes are formed by relatively gentle effusions of fluid basaltic lava.
Hallorans Hill's smooth, dome-like profile is the result of multiple flows of low-viscosity lava that spread easily across the landscape before cooling. These layered flows created the gentle slopes (typically less than 10 degrees) that give shield volcanoes their distinctive profile—resembling a warrior's shield laid on the ground.
Visitors to the summit lookout can appreciate how this eruption style contributed to the fertile agricultural lands that now characterise the Atherton area.
Near the township of Tolga stands Bones Knob, a shield volcano (1.7 million years ago) with a small crater on the top. It also has a secondary scoria cone (also known as a cinder cone - 1.66 million years ago) to the immediate northwest, seen as a horseshoe structure with cliffs. The lava flow extended 30km to Mareeba with a finger extending to Biboohra.
Scoria cones form when gas-rich magma reaches the surface and expands rapidly, fragmenting the molten rock into small pieces called scoria or cinders. These pieces cool quickly in the air before landing around the vent, building a steep-sided cone of loose material. With its steeper sides (typically 30-40 degrees) and distinctive conical shape, the scoria cone at Bones Knob provides a stark contrast to its shield volcano base.
Mt Quincan , a classic cinder cone, formed as magma interacted with groundwater to produce violent eruptions. These explosions created a prominent crater with a surrounding rim of ejected material. The mountain's irregular shape and deep crater tell the story of these powerful blasts.
Lake Eacham (800m across and 60m deep) represents explosive volcanic features—a maar crater, formed when rising magma encountered groundwater, creating steam-driven explosions that blasted out a deep, wide crater about 9-10,000 years ago.
Unlike the constructive processes that built Hallorans Hill and Bones Knob, Lake Eacham formed primarily through destruction, as explosions excavated a crater that later filled with water to create the crystal-clear spring fed lake we see today.
The dramatic crater walls and depth of Lake Eacham testify to the enormous explosive power that can be generated when magma and water interact.
Located further south in the Tablelands, Mt Hypipamee National Park features one of the region's most unusual volcanic formations—a diatreme pipe. Unlike the other volcanic features we've explored, Mt Hypipamee's crater represents an extreme case of explosive volcanic activity.
The Mt Hypipamee Crater is a near-vertical pipe that was blasted through solid granite by a massive, high-pressure gas explosion. When magma rapidly ascended through the earth's crust, it encountered groundwater, creating a violent steam explosion that literally punched a cylindrical hole through the existing granite.
What makes Mt Hypipamee particularly distinctive is the sheer depth and verticality of its walls—the crater plunges approximately 150 meters down, with near-vertical sides, and contains a small lake about 60 meters below the viewing platform. The circular shape of the crater (roughly 61 meters in diameter) reflects the concentrated, pipe-like nature of the explosive event.
Mt Hypipamee represents volcanic activity at its most explosively focused—more like a volcanic gunshot than a traditional eruption. The surrounding rock shows minimal deformation, as the explosive force was directed vertically rather than laterally.
What makes the Atherton Tablelands fascinating is how these four distinct volcanic styles occurred in such close proximity. This diversity can be attributed to several differing factors including magma composition, ground water interaction, vent conditions and pre-existing geology.
For anyone interested in earth sciences or simply appreciating dramatic landscapes, these four volcanic neighbours provide a window into the powerful forces that continue to shape our planet's surface.
Chasing Waterfalls: A Rainy Day at Millstream Falls
Braving the Elements
This morning began with promise as I drove south from Mareeba under clear skies. However, nature had other plans. Around the ranges, particularly towards Atherton, clouds gathered ominously. The closer I got to Atherton, the lower and darker those clouds became, eventually enveloping the landscape in a fine drizzle.
I continued my journey south through Atherton towards Upper Barron. Briefly, the sky brightened and the clouds lifted, offering a momentary reprieve that didn't last. As I ascended into the ranges, the drizzle returned, more persistent than before. I contemplated turning back but decided to press on, hoping conditions might improve. By the time I passed the wind farm outside Ravenshoe, I was driving through wind and steady rain.
Solitude at Little Millstream Falls
My first destination was Little Millstream Falls. Fortunately, as I arrived, the rain eased to a light mist. I had the entire place to myself—a rare treat that meant I could fly my drone without worrying about disturbing other visitors.
The walking track to the falls wound through lush vegetation for a couple hundred meters. Despite the less-than-ideal weather, the scene that greeted me was worth the journey. The falls were flowing more vigorously than during my previous visit, making this a perfect opportunity for some long-exposure photography with a neutral density filter.
A Vibrant Landscape
What struck me most was how the recent rainfall had transformed the surroundings. Everything appeared more vibrant—the vegetation surrounding the falls was richer greens, while flowering bushes added splashes of colour to the scene. Even the rock face had come alive with specks of orange lichen that hadn't been as noticeable during drier conditions.
Battling the Elements
I positioned myself on the track directly overlooking the falls to maintain visual contact with my drone as I explored different angles and compositions. The overcast sky provided soft, diffused light—ideal for capturing the landscape without harsh shadows or blown-out highlights.
The conditions, however, presented their own challenges. Every few minutes, a brief shower would pass through, forcing me into a routine of flying the drone back repeatedly to wipe moisture from the lens. Despite my efforts, I later discovered during processing that several images were affected by water droplets and had to be discarded.
Worth the Effort
Looking back on the expedition, I'm glad I didn't turn around when the weather deteriorated. The moody atmosphere and enhanced water flow created photographic opportunities that wouldn't have been possible on a clear, dry day. Sometimes the most memorable images come from embracing challenging conditions rather than waiting for perfect weather.
Next time, I'll bring additional microfiber cloths and perhaps a small shelter for my takeoff area—lessons learned for future rainy day adventures.
Warwick Willmott, the author of Rocks and Landscapes of the National Parks of North Queensland, Geoscience Australia (Qld Branch) gives a great description of the geology of this area.
The town of Ravenshoe is almost on the western edge of the basalts from the Atherton Volcanic Province, and just to the west, older rhyolite lavas of the Glen Gordon Volcanics (of Carboniferous age) can be seen in cuttings of the Kennedy Highway, beneath pale shallow soils. However, some basalt flows continued further west down an old valley of The Millstream which flows past the town. The park covers a strip of these basalts along the present stream valley below the town.
The basalt flows are believed to have come from the Windy Hill Volcano, whose summit was near the present wind farm east of the town. After the valley was filled by the basalts, the stream had to carve a new course. Usually it cut down along the margin between the flows and the older surrounding rocks, but in places it cut a course in the basalts themselves.
There are two entrances to the national park. The Little Millstream Falls are reached along Tully Falls Road and Wooroora Road to the south of Ravenshoe. A short walking track leads to the base of the falls from the car park. These are cascades and slots cut into hard rhyolite of the Glen Gordon Volcanics, where the present stream has been forced to erode along the boundary of the rhyolite and the basalt flows. Just downstream from the pool at the base of the falls, the edge of a black basalt flow can be seen in the cliff to the south, on top of the rhyolite (photo opposite). Looking down the gorge from the walking track, you can see light grey rhyolite outcrops, pale soils and eucalypt forest on the right-hand side of the valley, and dark basalt outcrops red soils and denser vegetation on the left.
Big Millstream Falls are just off the Kennedy Highway 3 km west of Ravenshoe, where a walking track leads from a car park to a lookout over the falls. Three basalt fows have been identified, and the uppermost, on which the car park is situated, has been dated at 1.24 million years old. However, a soil profile has developed on top of the next next underlying flow, so this and the lowermost flow may be considerably older The falls plunge in a wide curtain over the horizontal, lowermost lava flow showing how ecology can influence the appearance of streams and falls The lower flows show prominent vertical cooling columns, formed as the flows cooled, contracted and cracked downwards in a regular pattern.
On the way from the Kennedy Highway into Big Millstream Falls, I take a detour via a narrow and rough track to the north to another set of cascades between Little and Big Millstream Falls. Lush tall grass and open forest with contrasting colours. The track is definitely 4 wheel drive. I had to park and walk a few sections before returning and advancing with the Mazda.
Not as impressive as the falls but an interesting section of the river.
On returning to the potholed road into Big Millstream Falls, it was a short distance to the carpark where only a few cars were parked. Good, the weather was probably discouraging visitors. No-one to annoy with the drone. The weather was on the verge of light showers with very little wind (good for attempting long exposures). I have used the drone before at this location and thought to look for different perspectives. Again, the vegetation was more lush than last time, and the water level - a little higher. I took shots covering the usual perspectives and then focused other ideas. There were interesting and beautiful trees I could use in the foreground of shots.
I suspected a few of the shots will come out nicely but would have to wait till I got home and processed them. All in all, an interesting and productive day! The overcast weather worked to my advantage, offering a soft light. On leaving Ravenshoe, I drove into rain again which remained with me till near Atherton. How lucky was I to avoid the worst of it?
